Question: Using the code reference and the partial section shown below, are there any code violations for the stepped footings? All dimensions are in millimetres. PARTIAL

Using the code reference and the partial section shown below, are there any code violations for the stepped footings? All dimensions are in millimetres.

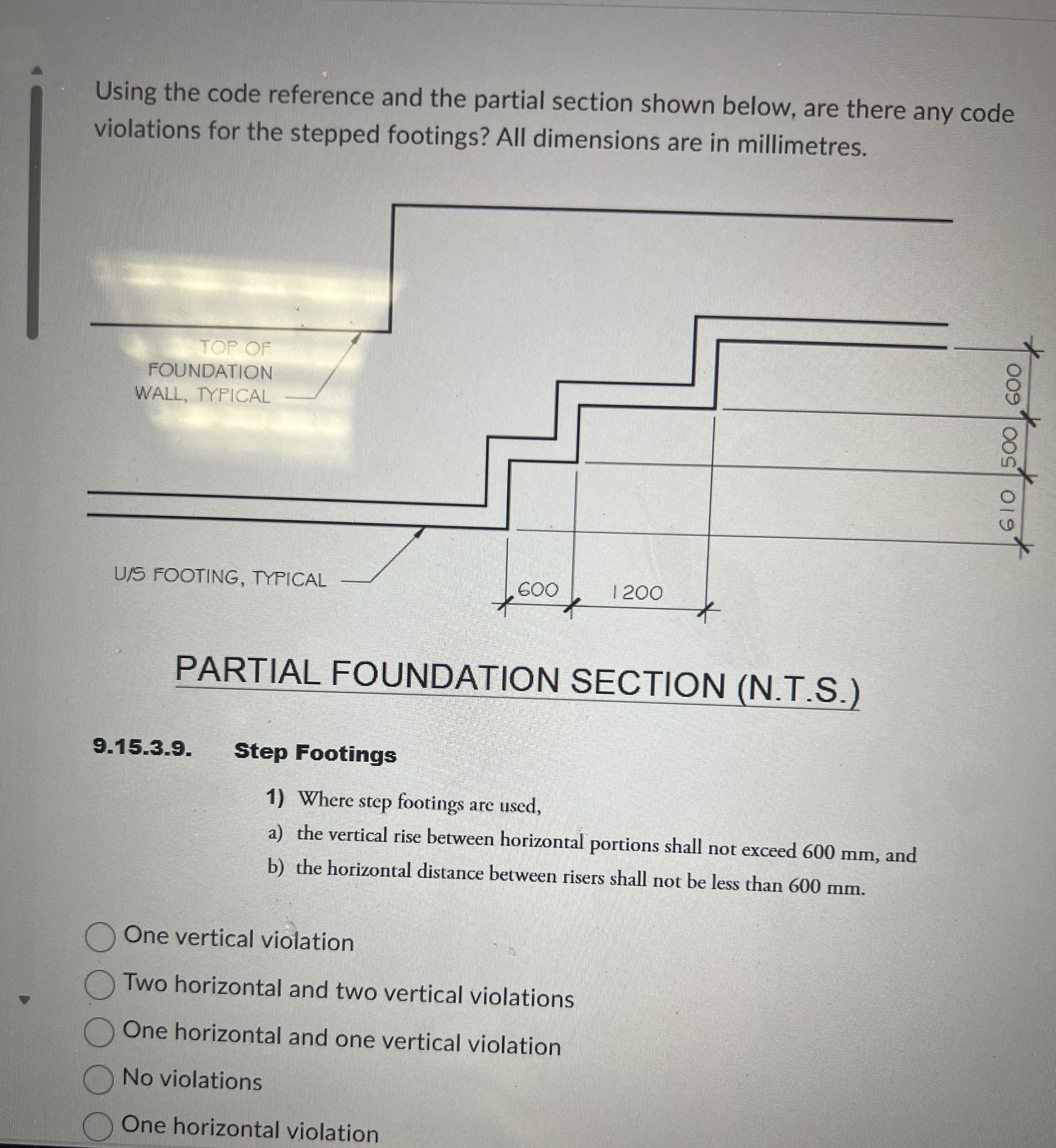

PARTIAL FOUNDATION SECTION (N.T.S.)
9.15.3.9. Step Footings
Where step footings are used,
a) the vertical rise between horizontal portions shall not exceed 600 mm , and
b) the horizontal distance between risers shall not be less than 600 mm .
One vertical violation
Two horizontal and two vertical violations
One horizontal and one vertical violation
No violations
One horizontal violation
