Question: Using the figure to answer the question. Here, the safety system for the following pressure vessel consists of four valves, which are connected to the

Using the figure to answer the question.

Using the figure to answer the question. Here, the safety system for

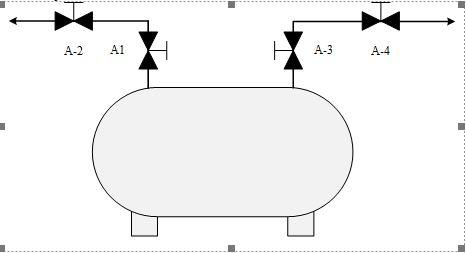

Here, the safety system for the following pressure vessel consists of four valves, which are connected to the tank. The valves will open if the pressure in the tank exceeds a certain level (for example P₀). The content in the tank will be released to the environment if both valves A_l and A₂ on Line-1 or both valves A₃ and A₄ on Line-2 are open.

1. Construct fault tree analysis for this system,

2. Assuming the probability of failure for each valve is 0.01, determine the probability of failure for the top event,

3. The reliability of the system.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
