Question: Using the first moment - area method, calculate the angle ( deg ) between the tangent lines to the elastic curve at midspan and at

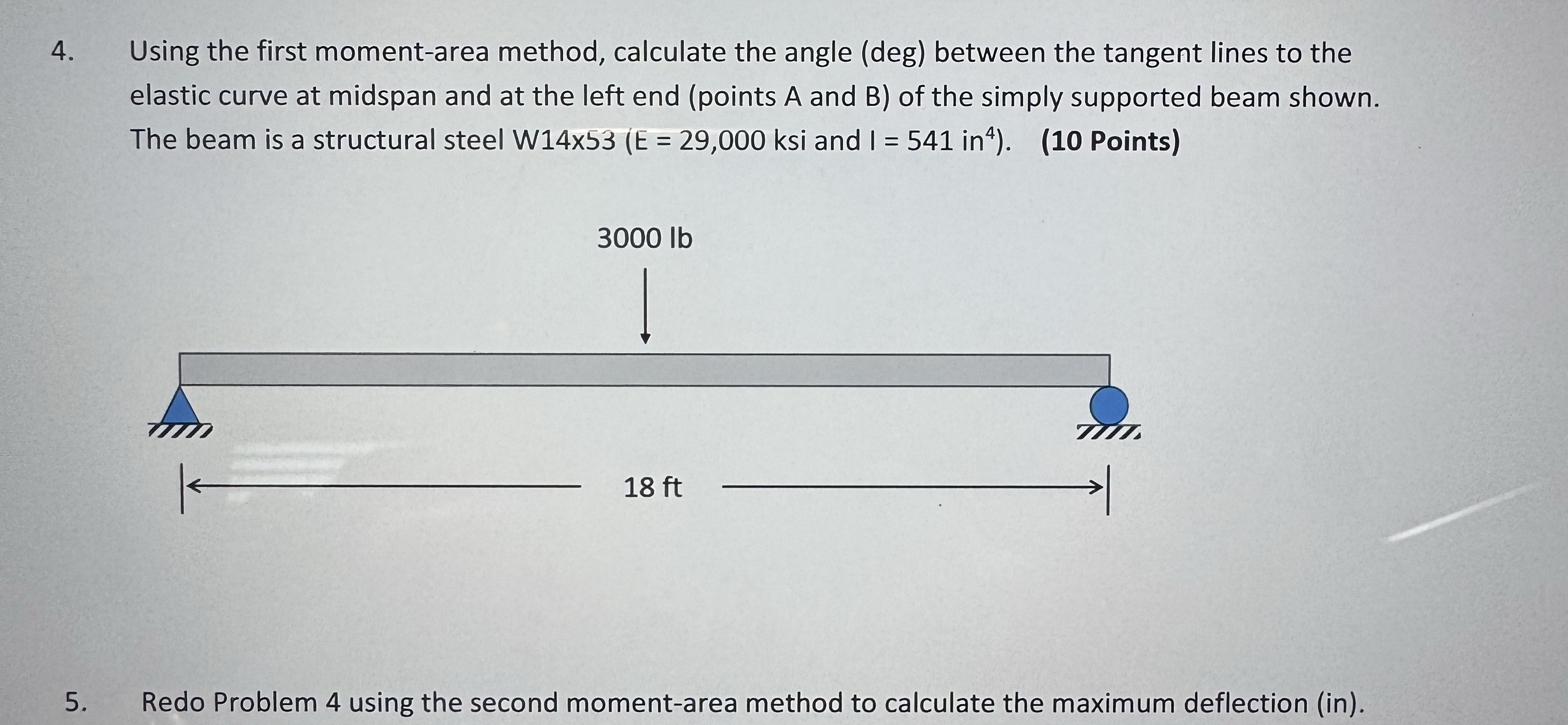

Using the first moment-area method, calculate the angle (deg) between the tangent lines to the elastic curve at midspan and at the left end (points A and B) of the simply supported beam shown. The beam is a structural steel W14x53(E=29,000ksi and I=541in4).
Redo Problem 4 using the second moment-area method to calculate the maximum deflection (in).
Using the first moment - area method, calculate
