Question: Using the following Context Diagram shown below, create a corresponding Diagram 0 DFD for the ATM system. Your DFD 0 must contain the following: Minimum

Using the following Context Diagram shown below, create a corresponding Diagram 0 DFD for the ATM system. Your DFD 0 must contain the following:
Minimum of 3 processes using the correct symbols
Minimum of 1 data store using the correct symbols
External entities using the correct symbols
All processes must be numbered and labeled.
All Data flows must be labeled and show the appropriate arrow directions.
External entities balanced with the Context Diagram

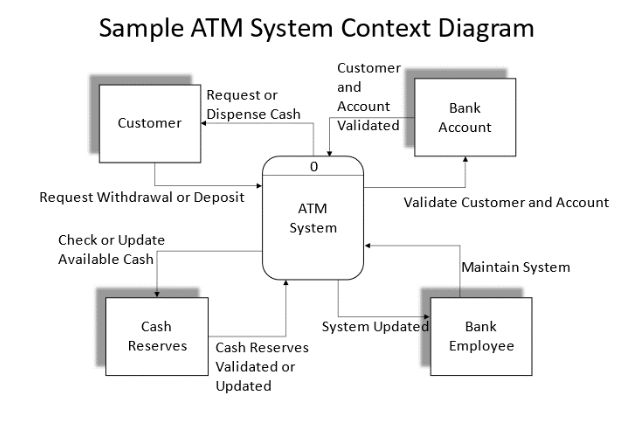

All data flows must be correctly positioned (no spontaneous generation processes, no black holes, no gray holes)Sample ATM System Context Diagram
 Using the following Context Diagram shown below, create a corresponding Diagram

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
