Question: using the HIGHLIGHTED VALUES, please answer the problem showing calculations 1. Determine the force in each member of the Pratt truss, and state if the

using the HIGHLIGHTED VALUES, please answer the problem showing calculations

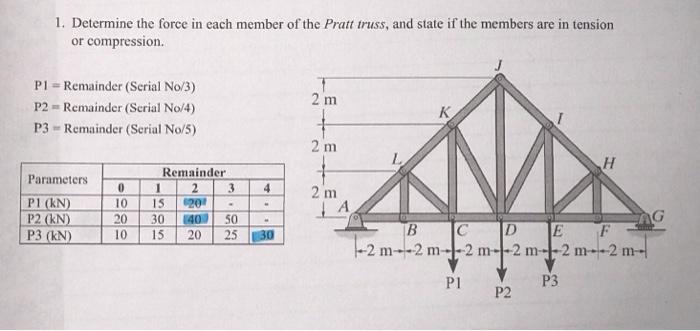

1. Determine the force in each member of the Pratt truss, and state if the members are in tension or compression. 2 m P1 = Remainder (Serial No/3) P2 - Remainder (Serial No/4) P3 - Remainder (Serial No/5) . 2 m H 4 2 m Parameters PI (kN) P2 (kN) P3 (kN) 0 10 20 10 Remainder 1 2 3 15 200 30 1400 SO 15 20 25 A AG 30 B D F -2 m-.2 m 1-2 m-- 1-2 m2 m--2m- P1 P3 P2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Part A Consider the truss shown in ( Figure 1 ) . Suppose that F 1 = 3 0 0 l b , F 2 = 6 5 0 l b and F 3 = 4 0 0 l b . All interior angles are 6 0 . Assume all members are pin connected. Determine...

please help answer all parts Problem 3 . 1 2 Consider the truss shown in ( Figure 1 ) . Suppose that F _ ( 1 ) = 2 5 0 lb , F _ ( 2 ) = 5 5 0 lb and F _ ( 3 ) = 4 5 0 lb . All interior angles are 6 0...

Determine the force in members \ ( F E , F B \ ) , and \ ( B C \ ) of the truss and state if the members are in tension or compression. After sectioning the truss, solve for each force directly using...

Part A Determine the force in members F E , F B , and B C of the truss and state if the members are in tension or compression. After sectioning the truss, solve for each force directly using a single...

Determine the force in members K J , K D , and C D of the Pratt truss. State if the members are in tension or compression. Take that P 1 = 1 7 k N , P 2 = 3 3 k N and P 3 = 4 3 k N . ( Figure 1 )...

Determine the force in members K J , K D , and C D of the Pratt truss. State if the members are in tension or compression. Take that P 1 Part B Determine the force in members K J , and state if the...

Problem 3 Time left 0 : 4 5 : 1 Consider the cantilevered truss in Figure P 3 , which is supported by a pin at E and a roller at F . It is loaded with four point forces: F 1 = 9 k N , F 2 = 1 3 k N ,...

Determine the force in member \ ( F E \ ) of the truss. Determine the force in members \ ( F E , F B \ ) , and \ ( B C \ ) of the truss and state if the members are in tension or compression. After...

F F C = 4 . 1 7 k Previous Answers Consider the truss shown in ( Figure 1 ) . Suppose that F = 5 k . Assume all members are pin connected. Figure Correct Here we learn how to determine the force in a...

Consider the truss shown in ( Figure 1 ) . Suppose that F = 8 k N . Assume all members are pin connected. tension. View Available Hint ( s ) Previous Answers Correct Here we learn how to determine...
