Question: Using the Method of Sections determine the force in members D E , J E , J I . Also determine the force in members

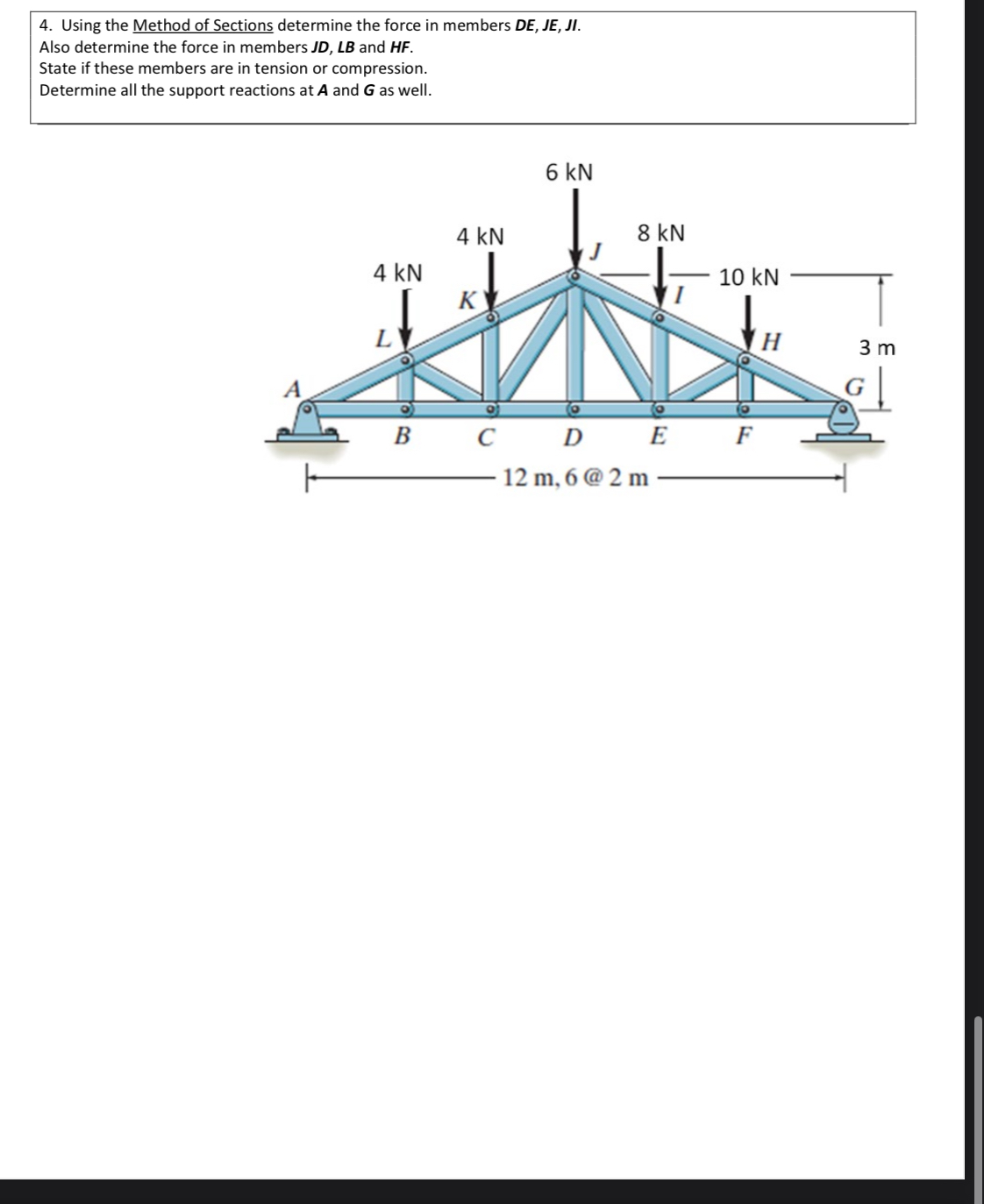

Using the Method of Sections determine the force in members DE,JE,JI.
Also determine the force in members J,LB and HF.
State if these members are in tension or compression.
Determine all the support reactions at A and G as well.
Using the Method of Sections determine the force

Step by Step Solution

There are 3 Steps involved in it
