Question: Using the method of virtual work, determine the deflection at point D for the cantilever beam shown below. The support at A is a pin

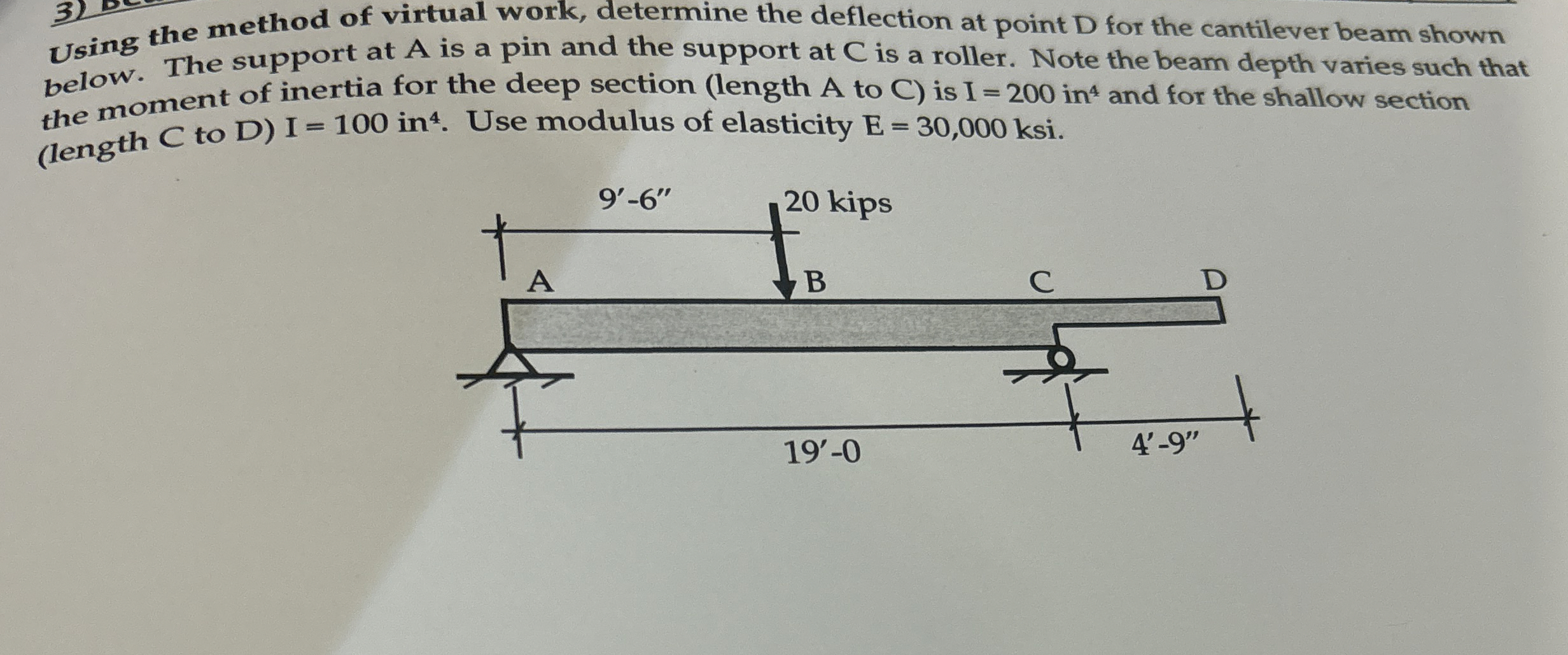

Using the method of virtual work, determine the deflection at point D for the cantilever beam shown below. The support at A is a pin and the support at C is a roller. Note the beam depth varies such that the moment of inertia for the deep section (length A to C) is I=200 in ?4 and for the shallow section (length C to D )I=100in4. Use modulus of elasticity E=30,000ksi.
Using the method of virtual work, determine the

Step by Step Solution

There are 3 Steps involved in it
