Question: Using the scheme below calculate: 1 - The flow rate in the pipe Q 2 - The height of fluid in the tank h s

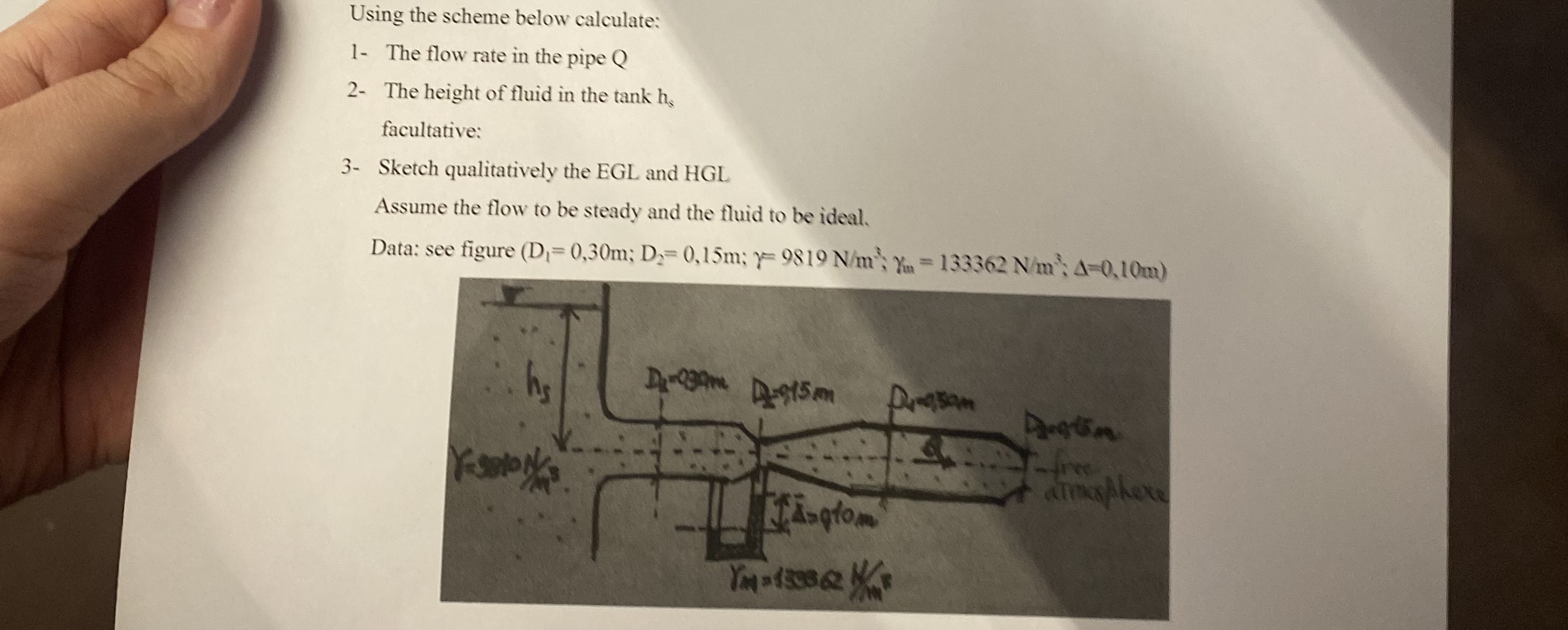

Using the scheme below calculate:
1- The flow rate in the pipe Q
2- The height of fluid in the tank hs facultative:
3- Sketch qualitatively the EGL and HGL
Assume the flow to be steady and the fluid to be ideal.
Data: see figure
Using the scheme below calculate: 1 - The flow

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
