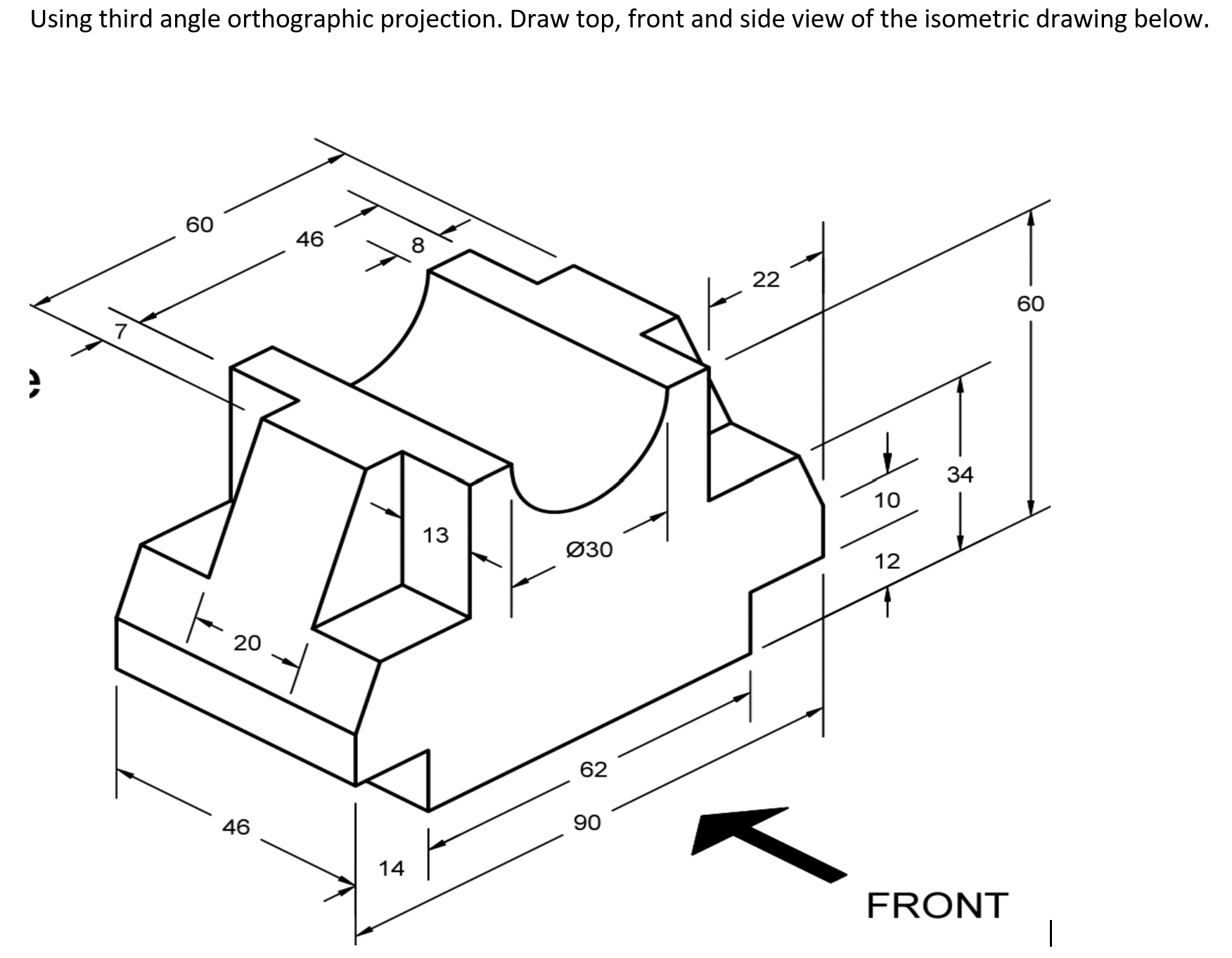

Question: Using third angle orthographic projection. Draw top, front and side view of the isometric drawing below.

Using third angle orthographic projection. Draw top, front and side view of the isometric drawing below.
Using third angle orthographic projection. Draw

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Question 4 Figure 3.4 shows an isometric drawing of a Tool Block in inches measurement unit. Draw front, right side and top views using third angle orthographic projection. The arrow shows direction...

Q:

ASSIGNMENT: ON A ONE - INCH GRID SHEET ( . 1 0 - IN . SQUARES ) , SKETCH THE TOP, FRONT, AND RIGHT - SIDE VIEWS OF ONE OF THE PARTS SHOWN, USING THIRD - ANGLE ORTHOGRAPHIC PROJECTION. ALLOW ABOUT 1 ....

Q:

DRC 1 5 0 1 ASSESSMENT 4 3 0 AUGUST 2 0 2 4 1 . 1 Define Orthographic projection 1 . 2 Differentiate between first and third angle projections using symbols ( 4 ) 1 . 3 Draw the front - , top and...

Q:

Follow the instructions to create orthographic views on a PIECE OF GRAPH PAPER a . Draw the Front, Top, and Right side views of the isometric drawing ( i . e . , as seen from the opposite direction...

Q:

DRC 1 5 0 1 ASSESSMENT 4 3 0 AUGUST 2 0 2 4 1 . 1 Define Orthographic projection ( 2 ) 1 . 2 Differentiate between first and third angle projections using symbols ( 4 ) 1 . 3 Draw the front - , top...

Q:

1 . 1 Define Orthographic projection ( 2 ) 1 . 2 Differentiate between first and third angle projections using symbols ( 4 ) 1 . 3 Draw the front - , top and right view of the given Isometric drawing...

Q:

1 . 3 Draw the front - , top and right view of the given Isometric drawing in figure 1 below. In Third Angle Orthographic Projection . . Use own dimensions to fit on your drawing paper Label the...

Q:

QUESTION 1 : [ 3 0 marks ] Appendix A shows two views of a machine casting. Draw, using any scale and in third - angle orthographic projection, the following views of the component: 1 . 1 . A...

Q:

Figure 1 below shows an isometric view of an object. Do not copy this view but draw the object in THIRD ANGLE ORTHOGRAPHIC PROJECTION, showing only the front and the right view. The front view is in...

Q:

QUESTION 1 : Appendix A shows two views of a machine casting. Draw, using any scale and in third - angle orthographic projection, the following views of the component: 1 . 1 . A sectional front view...
