Question: V R 2 = 1 0 v Problem + 2 2 0 PPss: Apply mesh analysis to write the equations for the mesh currents I

VR2=10v

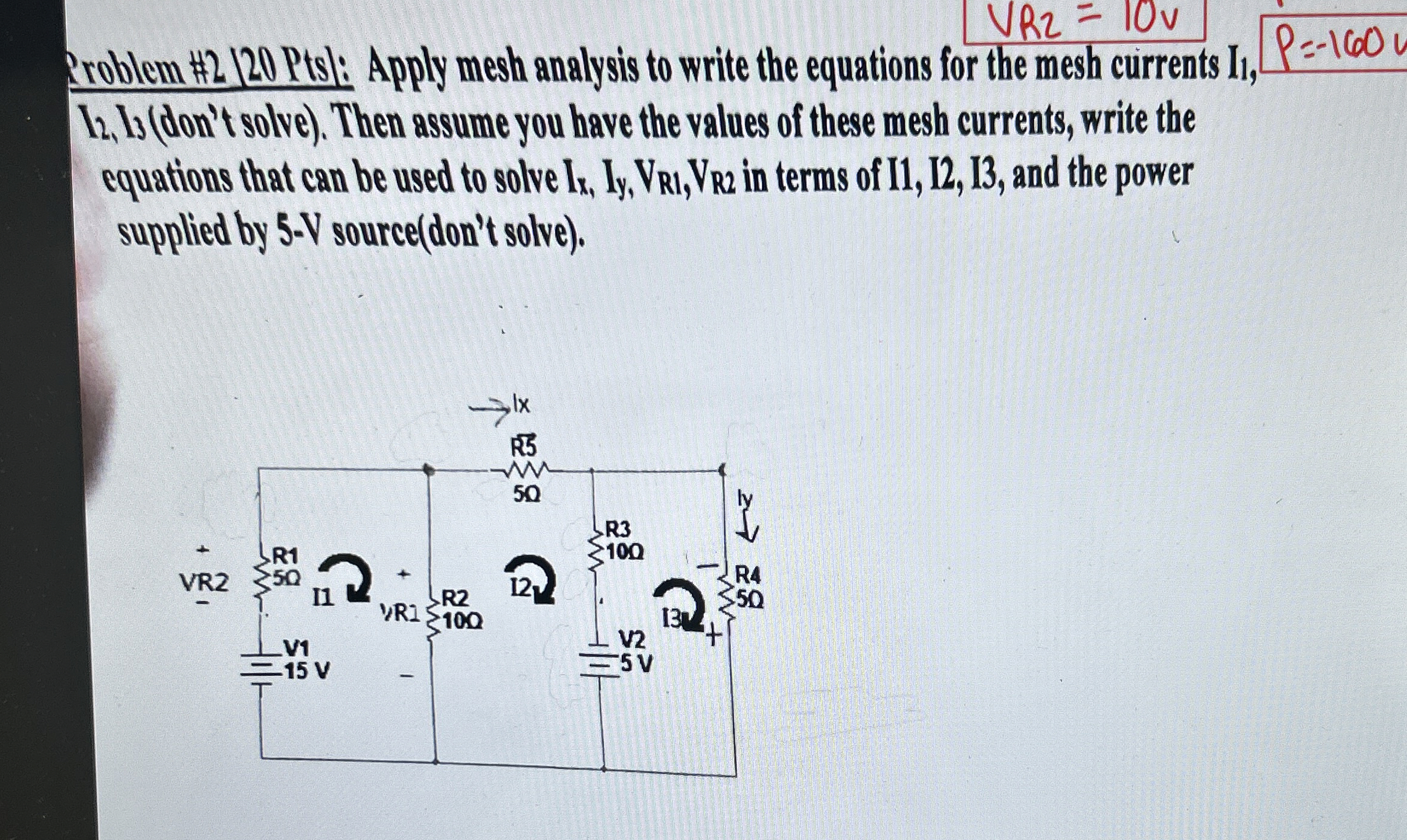

Problem +220 PPss: Apply mesh analysis to write the equations for the mesh currents I1
P=-1600
12.13(don't solve). Then assume you have the values of these mesh currents, write the equations that can be used to solve I1,I3,VR,VR2 in terms of 11,12,13, and the power supplied by 5-1 source(don't solve).
V R 2 = 1 0 v Problem + 2 2 0 PPss: Apply mesh

Step by Step Solution

There are 3 Steps involved in it
