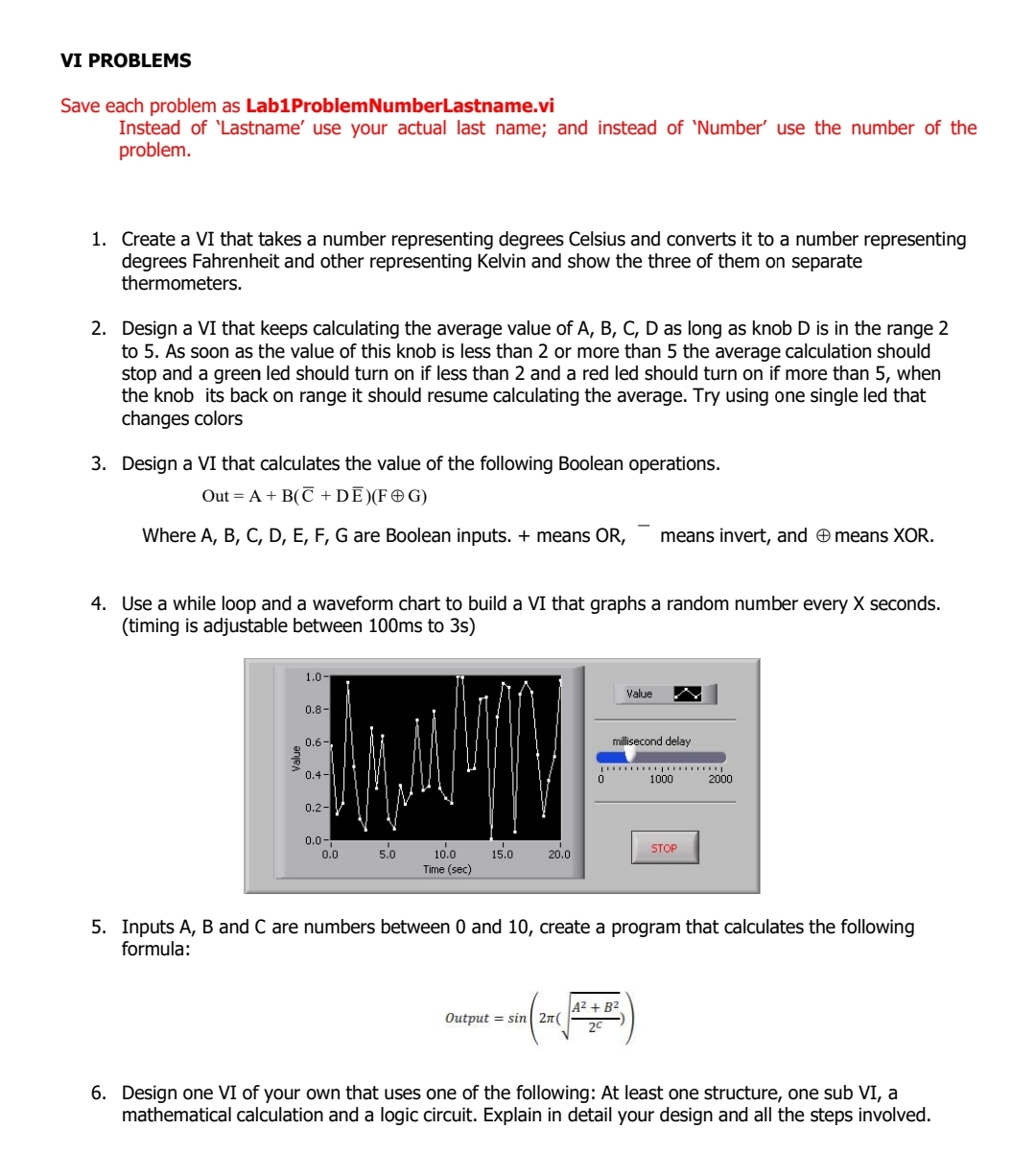

VI PROBLEMS

Save each problem as

Lab$1$ProblemNumberLastname.vi

Instead of 'Lastname' use your actual last name; and instead of 'Number' use the number of the

problem.

Create a VI that takes a number representing degrees Celsius and converts it to a number representing

degrees Fahrenheit and other representing Kelvin and show the three of them on separate

thermometers.

Design a VI that keeps calculating the average value of $A,B,C,D$ as long as knob $D$ is in the range $2$

to $5.$ As soon as the value of this knob is less than $2$ or more than $5$ the average calculation should

stop and a green led should turn on if less than $2$ and a red led should turn on if more than $5,$ when

the knob its back on range it should resume calculating the average. Try using one single led that

changes colors

Design a VI that calculates the value of the following Boolean operations.

Out $=A+B(\frac{?}{\text{b}\text{a}\text{r}}(C)+\frac{D}{b}ar(E))(Fo+G)$

Where A$,$ B$,$ C$,$ D$,$ E$,$ F$,$ G are Boolean inputs. $+$ means OR$,{?}^{-}$means invert, and $o+$ means XOR.

Use a while loop and a waveform chart to build a VI that graphs a random number every X seconds.

$($timing is adjustable between $100$ ms to $3$ s $)$

Inputs $A,B$ and $C$ are numbers between $0$ and $10,$ create a program that calculates the following

formula:

Output $=sin(2(\sqrt[\phantom{2}]{\frac{A^2+B^2}{2^C}}))$

Design one VI of your own that uses one of the following: At least one structure, one sub VI$,$ a

mathematical calculation and a logic circuit. Explain in detail your design and all the steps involved.
