Question: Water ( unit weight gamma = 9 . 8 kN / m 3 ) flows through the pipe shown in the figure. Calculate the pressure

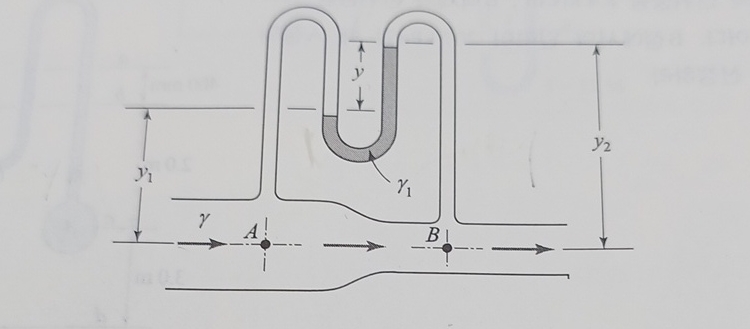

Water (unit weight gamma =9.8 kN/m3) flows through the pipe shown in the figure. Calculate the pressure difference between points A and B when the gamma 1=133.4kN/m3,y=240mm of the manometer.
Water ( unit weight gamma = 9 . 8 kN / m 3 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
