Question: We are given the structure shown in Figure 3 , subjected to vertical ( gravity ) and horizontal ( lateral ) loads. rigure 3 Find

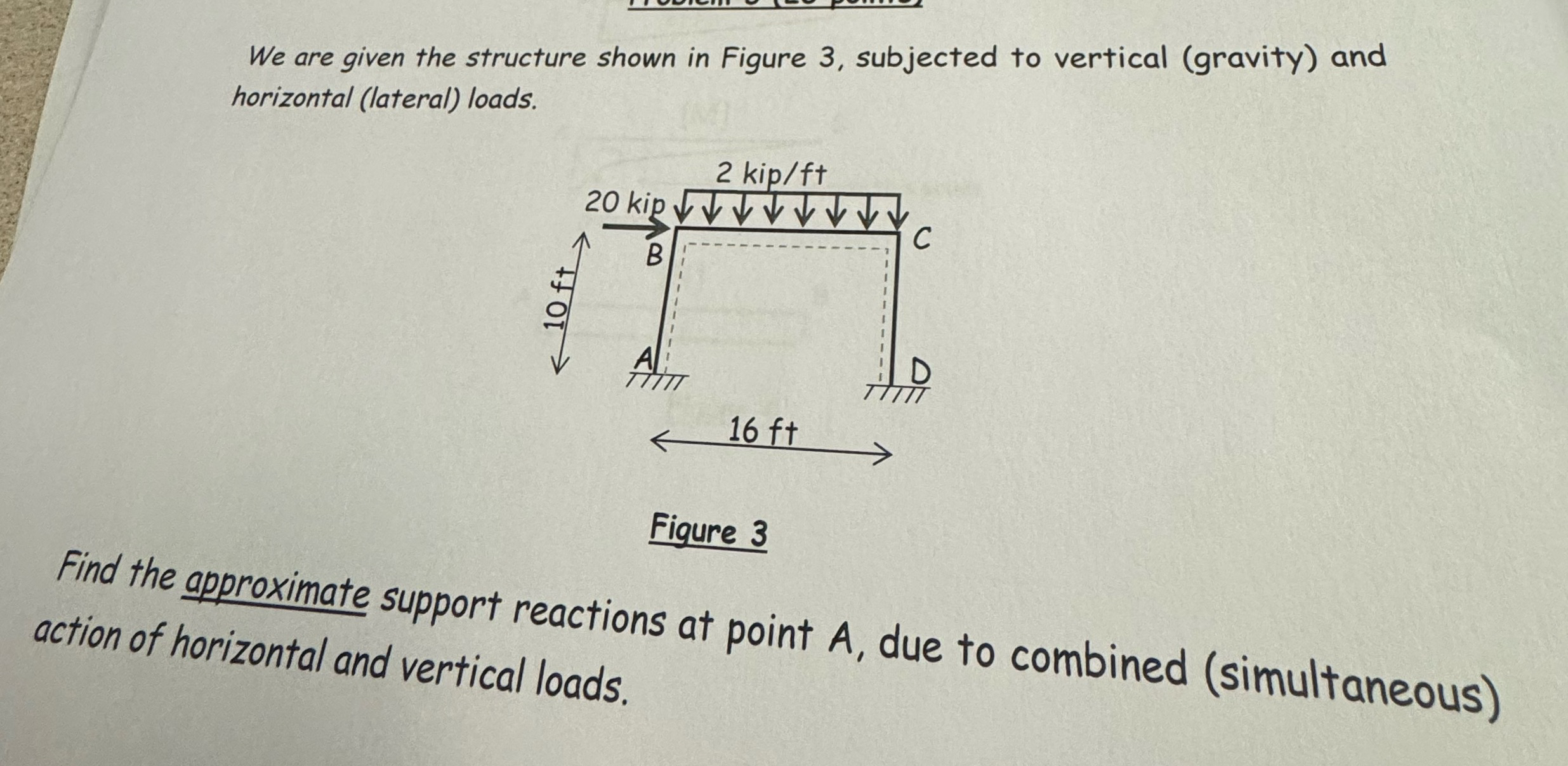

We are given the structure shown in Figure 3, subjected to vertical (gravity) and horizontal (lateral) loads.
rigure 3
Find the approximate support reactions at point A, due to combined (simultaneous) action of horizontal and vertical loads.
We are given the structure shown in Figure 3 ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
