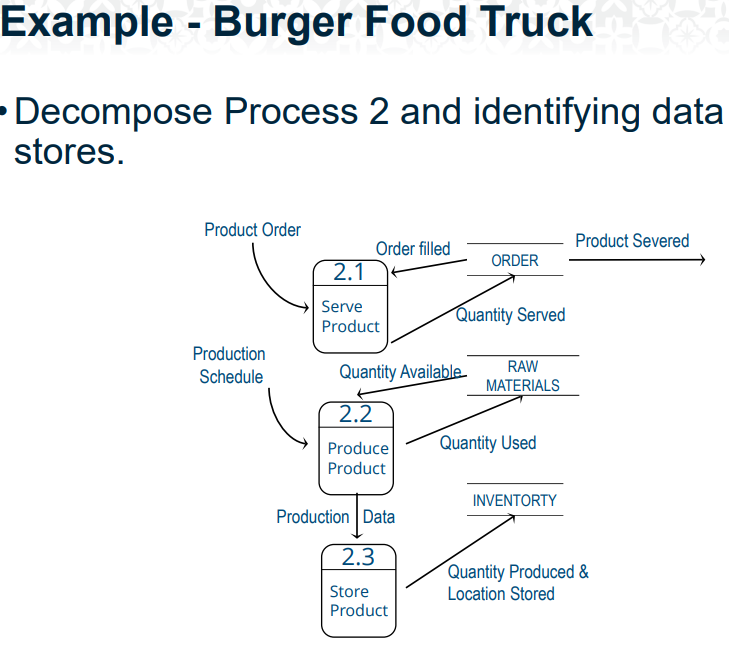

We designed the Burger Truck System by showing its DFD in Chapter 5. Recall that we started with the activity analysis, the context diagram, and the decomposition of Process 2. Please follow our design in the class and complete the decomposition for Process 1 Take Order, and Process 3 Procure Materials (Please use Gane and Sarson symbols in your DFD).

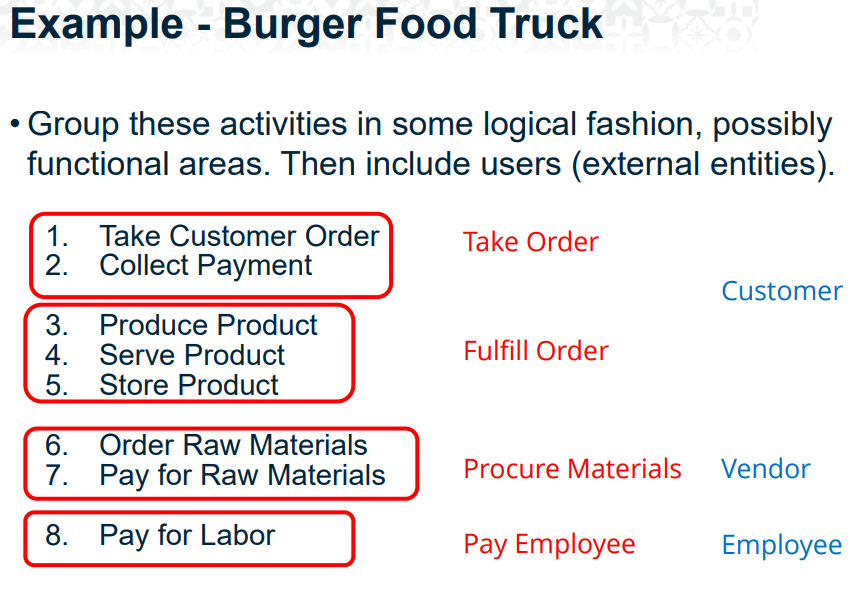

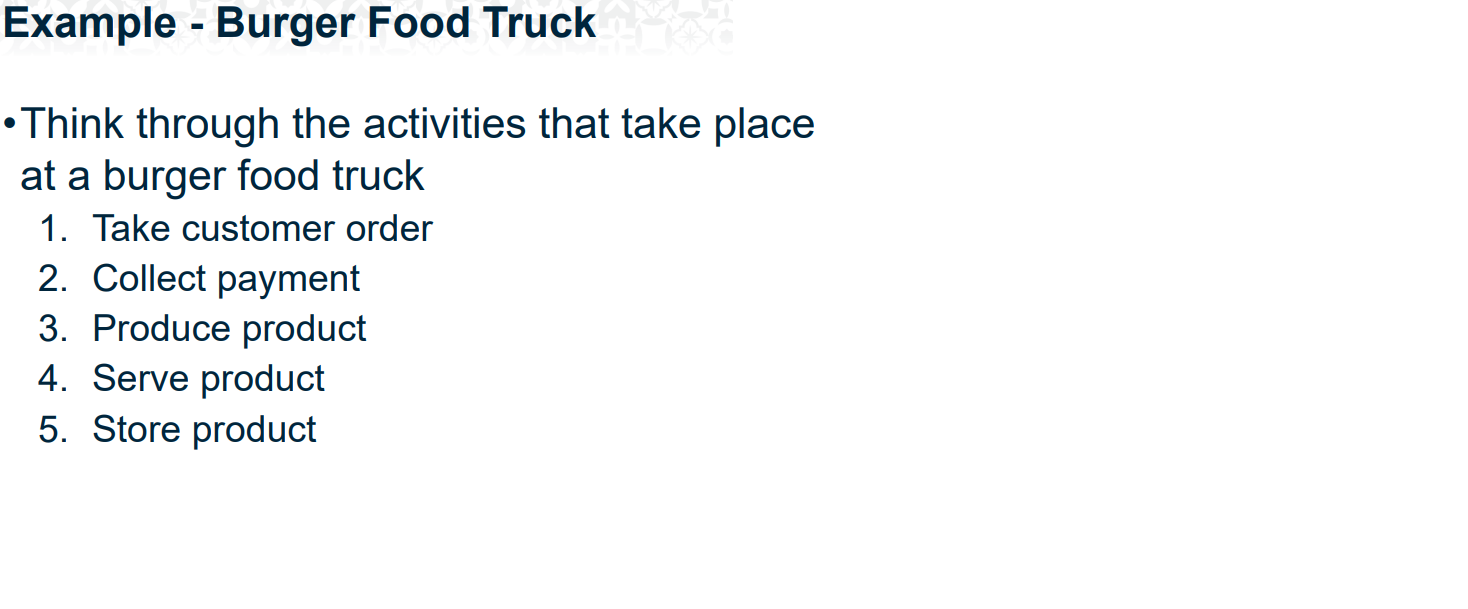

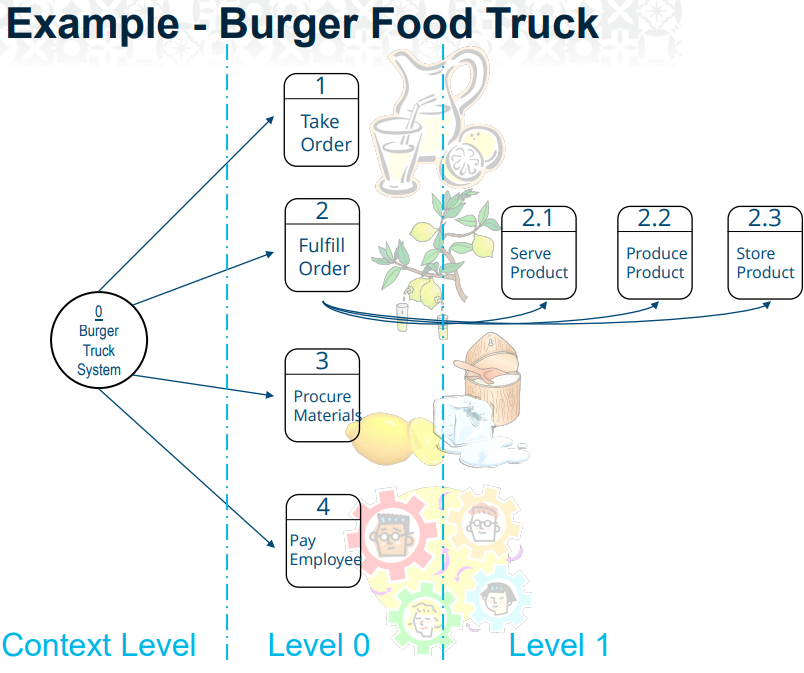

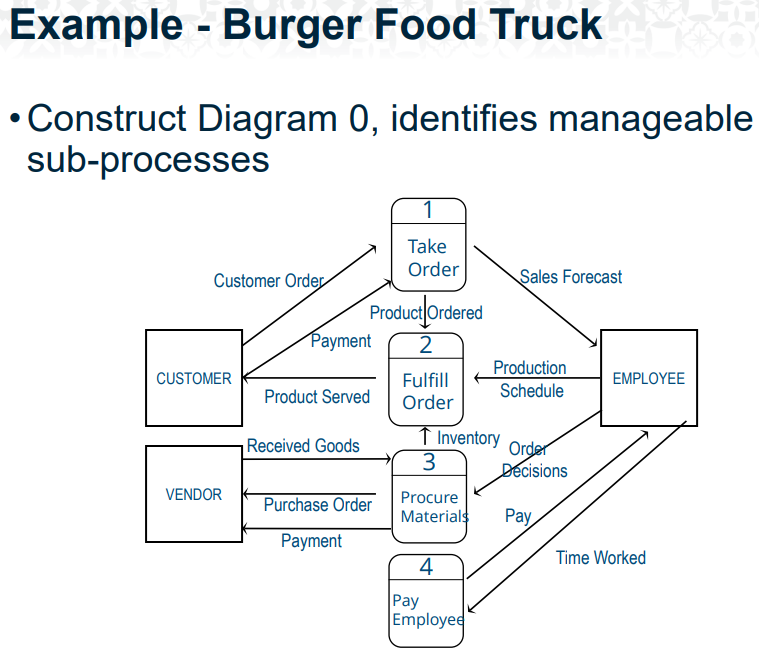

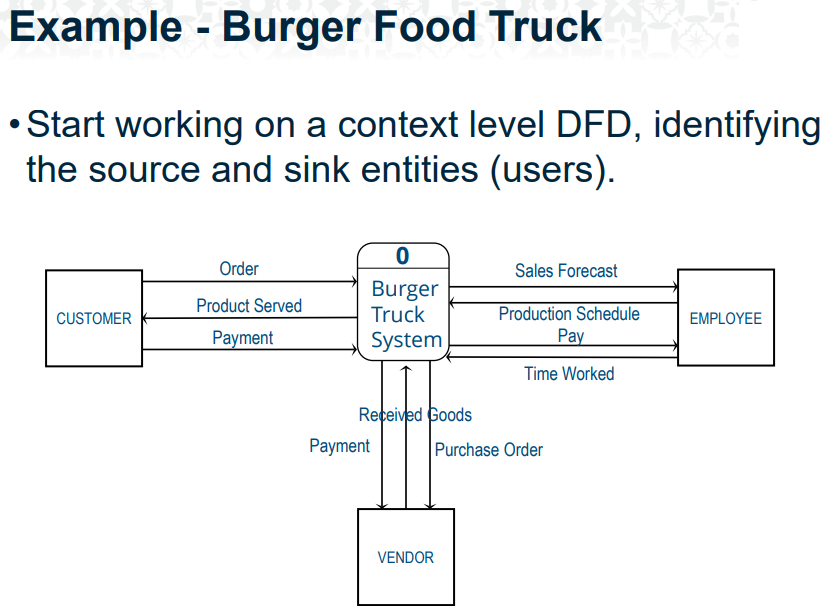

Example - Burger Food Truck Think through the activities that take place at a burger food truck 1. Take customer order 2. Collect payment 3. Produce product 4. Serve product 5. Store product Example - Burger Food Truck Also think of the additional activities needed to support the basic activities. 1. Take Customer order 2. Collect payment 3. Produce product 4. Serve product 5. Store product 6. Order raw materials 7. Pay for raw materials 8. Pay for labor Example - Burger Food Truck Group these activities in some logical fashion, possibly functional areas. Then include users (external entities). 1. Take Customer Order 2. Collect Payment Take Order Customer 3. Produce Product 4. Serve Product 5. Store Product Fulfill Order 6. Order Raw Materials 7. Pay for Raw Materials Procure Materials Vendor 8. Pay for Labor Pay Employee Employee Example - Burger Food Truck Start working on a context level DFD, identifying the source and sink entities (users). Order Sales Forecast 0 Burger Truck System Product Served Payment CUSTOMER Production Schedule Pay EMPLOYEE Time Worked Received Goods Payment Purchase Order VENDOR Example - Burger Food Truck Construct Diagram 0, identifies manageable sub-processes 1 Take Order Customer Order Sales Forecast Product[ordered Payment CUSTOMER EMPLOYEE Product Served 2 Production Fulfill Schedule Order 1 Inventory Order 3 Decisions Procure Materials Pay Received Goods VENDOR Purchase Order Payment 4 Time Worked Pay Employee Example - Burger Food Truck Decompose Process 2 and identifying data stores. Product Order Product Severed Order filled 2.1 ORDER Serve Product Quantity Served Production Schedule Quantity Available RAW MATERIALS 2.2 Quantity Used Produce Product INVENTORTY Production Data 2.3 Quantity Produced & Location Stored Store Product Example - Burger Food Truck 1 Take Order 2 2.1 2.2 2.3 Fulfill Order Serve Product Produce Product Store Product - 0 Burger Truck System 3 Procure Materials 4 Pay Employee Context Level Level 0 Level 1
