Question: We use the 4 - bit adder circuit shown below to add the binary numbers A = 1 0 0 0 and B = 1

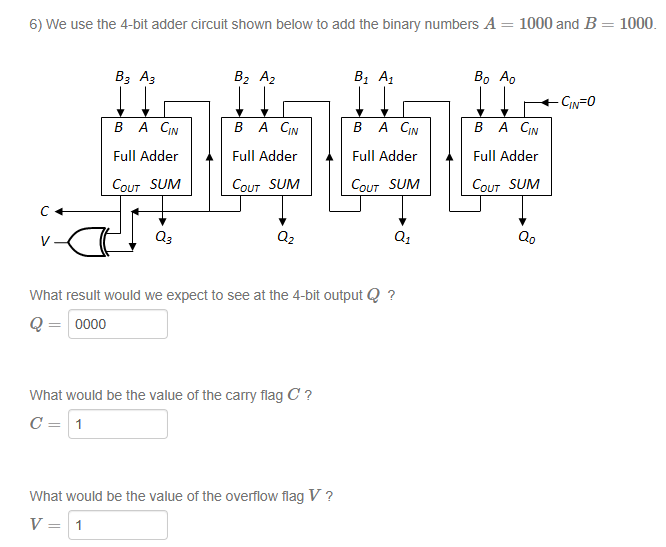

We use the 4-bit adder circuit shown below to add the binary numbers A=1000 and B=1000.
What result would we expect to see at the 4-bit output Q?
Q=
What would be the value of the carry flag C?
C=
What would be the value of the overflow flag V?
V=
We use the 4-bit adder circuit shown below to add the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

We use the 4 - bit adder circuit shown below to add the binary numbers A = 1 0 0 0 and B = 1 0 0 0 . What result would we expect to see at the 4 - bit output Q ? Q = What would be the value of the...
