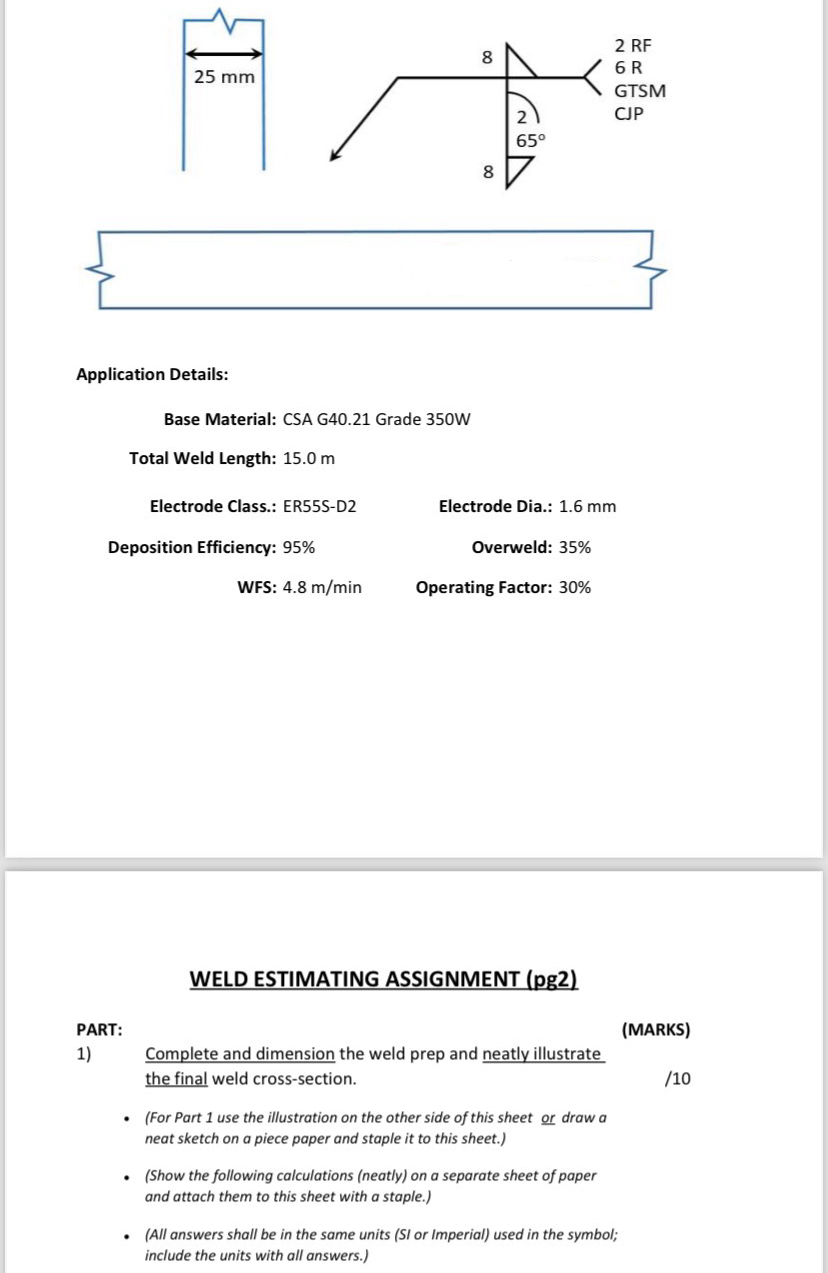

WELD ESTIMATING ASSIGNMENT

$($Note: This is an individual assingment$)$

Code

$21$A

Your Name: $q,$

Application Details:

Base Material: CSA G$40\mathrm{.}21$ Grade $350$W

Total Weld Length: $15\mathrm{.}0$ m

Electrode Class.: ER$55$S$-$D$2$

Deposition Efficiency: $95\%$

Electrode Dia.: $1\mathrm{.}6$ mm

Overweld: $35\%$

Operating Factor: $30\%$

WELD ESTIMATING ASSIGNMENT $($pg$2)$

PART:

$($MARKS$)$

Complete and dimension the weld prep and neatly illustrate the final weld cross$-$section.

$/10$

$($For Part $1$ use the illustration on the other side of this sheet or draw a neat sketch on a piece paper and staple it to this sheet.$)$

$($Show the following calculations $($neatly$)$ on a separate sheet of paper and attach them to this sheet with a staple.$)$

$($All answers shall be in the same units $($SI or Imperial$)$ used in the symbol; include the units with all answers.$)$

Application Details:

Base Material: CSA G$40\mathrm{.}21$ Grade $350$W

Total Weld Length: $15\mathrm{.}0$ m

Electrode Class.: ER$55$S$-$D$2$

Deposition Efficiency: $95\%$

WFS: $4\mathrm{.}8\frac{m}{m}in$

Electrode Dia.: $1\mathrm{.}6$ mm

Overweld: $35\%$

Operating Factor: $30\%$

WELD ESTIMATING ASSIGNMENT $($pg$2)$

PART:

Complete and dimension the weld prep and neatly illustrate the final weld cross$-$section.

$($For Part $1$ use the illustration on the other side of this sheet or draw a neat sketch on a piece paper and staple it to this sheet.$)$

$($Show the following calculations $($neatly$)$ on a separate sheet of paper and attach them to this sheet with a staple.$)$

$($All answers shall be in the same units $($SI or Imperial$)$ used in the symbol; include the units with all answers.$)$

$($MARKS$)$

$/10$
