Question: What is the equivalent resistant between point A & B in ohms? All the resistors are the same and each of them has a resistance

What is the equivalent resistant between point A & B in

ohms? All the resistors are the same and each of them has

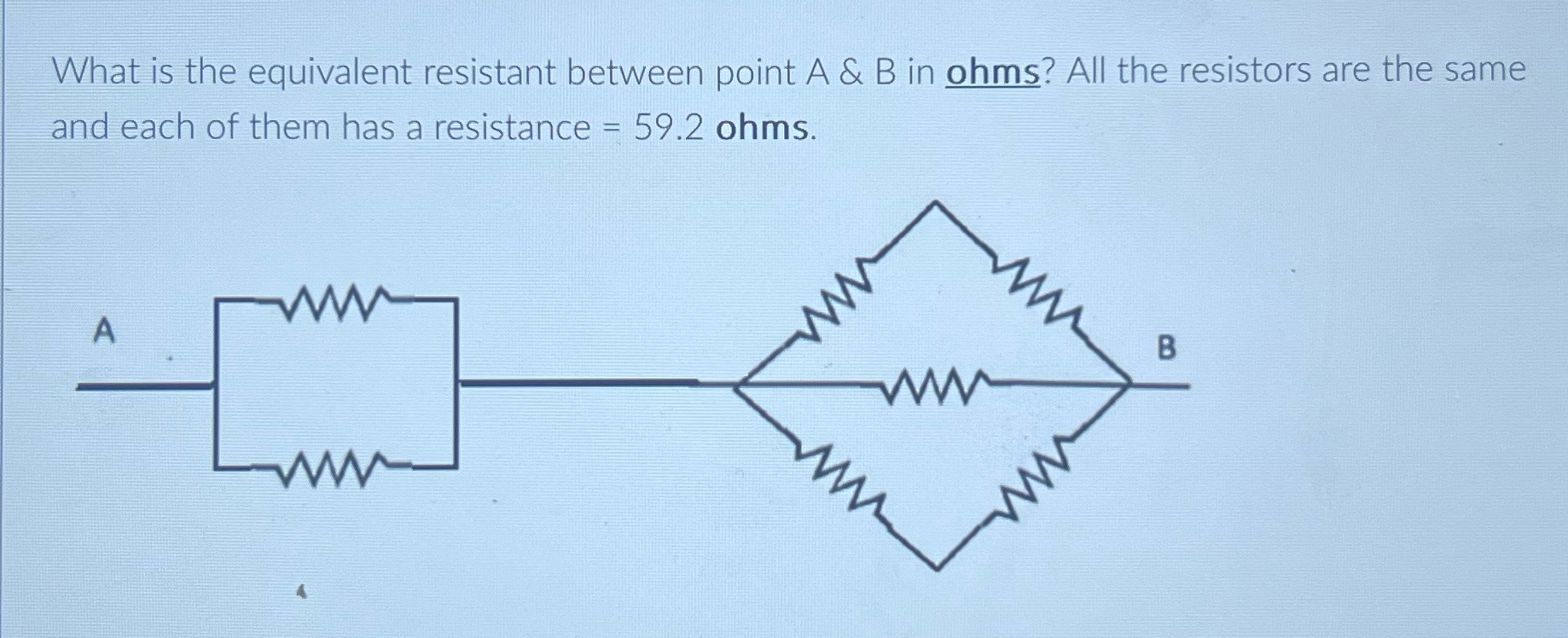

What is the equivalent resistant between point A & B in ohms? All the resistors are the same and each of them has a resistance = 59.2 ohms. B A M

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Q:

What is the equivalent resistant between point A & B ? All the resistors are the same and each of them has a resistance = 1 0 . 0 ohms. Show your work.
