Question: what is the relationship between the classes in the below UML diagram? List the tables with primary keys, attributes, and foreign keys that implement the

what is the relationship between the classes in the below UML diagram?

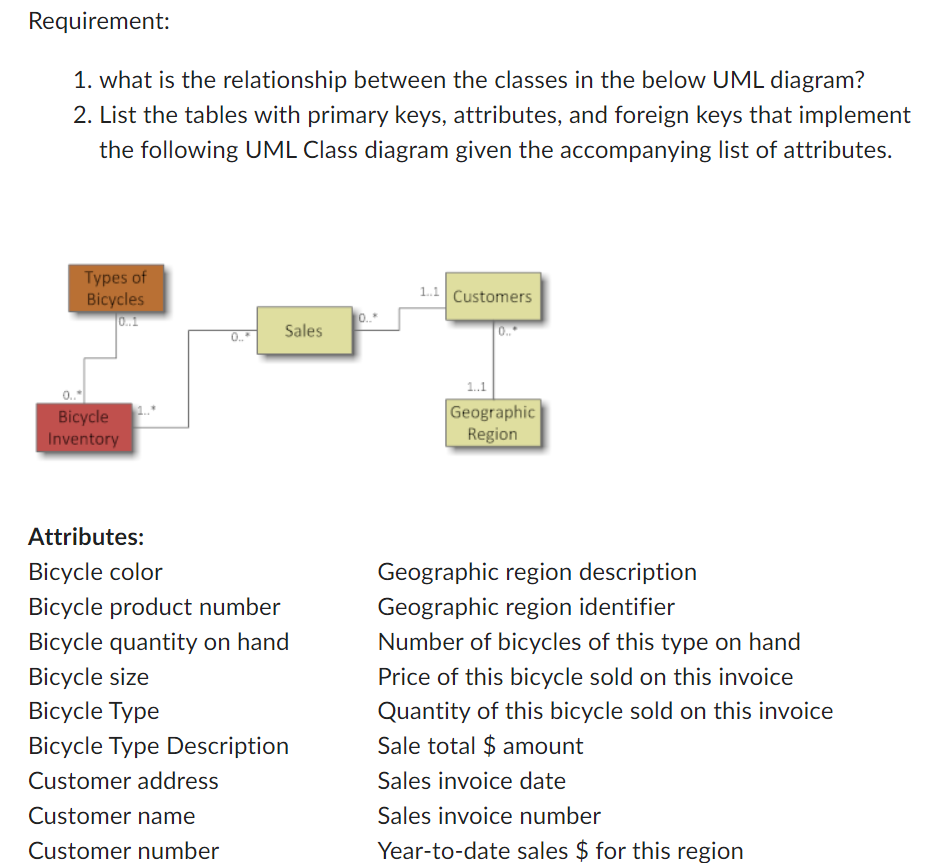

List the tables with primary keys, attributes, and foreign keys that implement
the following UML Class diagram given the accompanying list of attributes.
Attributes:
Bicycle color
Bicycle product number
Bicycle quantity on hand
Bicycle size
Bicycle Type
Bicycle Type Description
Customer address
Customer name
Customer number
Geographic region description
Geographic region identifier
Number of bicycles of this type on hand
Price of this bicycle sold on this invoice
Quantity of this bicycle sold on this invoice
Sale total $ amount
Sales invoice date
Sales invoice number
Year-to-date sales $ for this region
