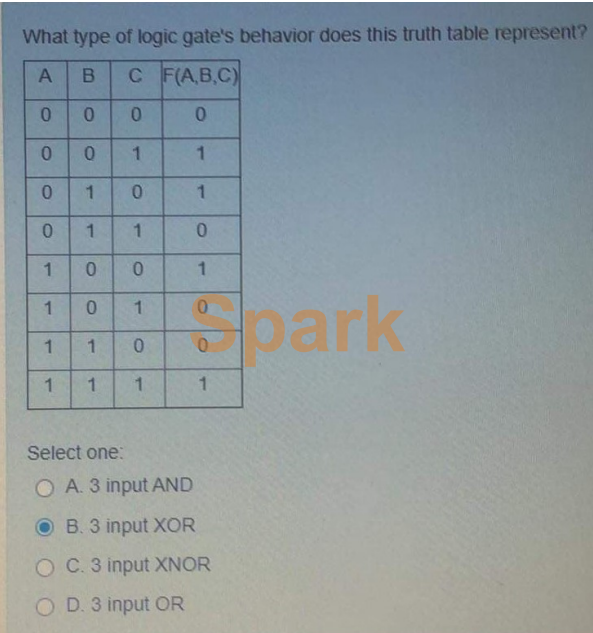

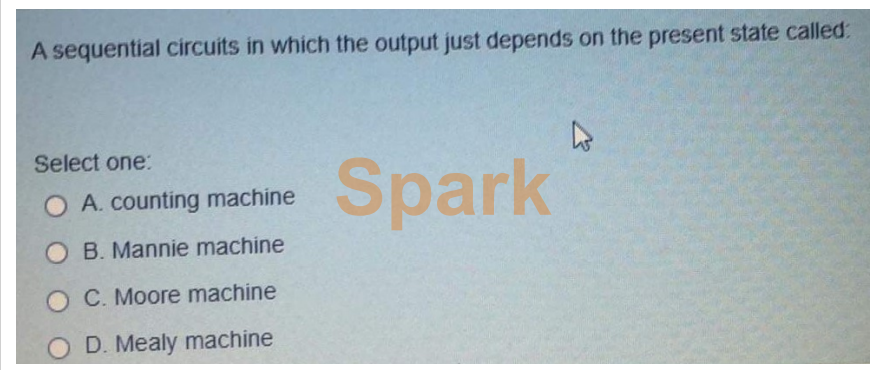

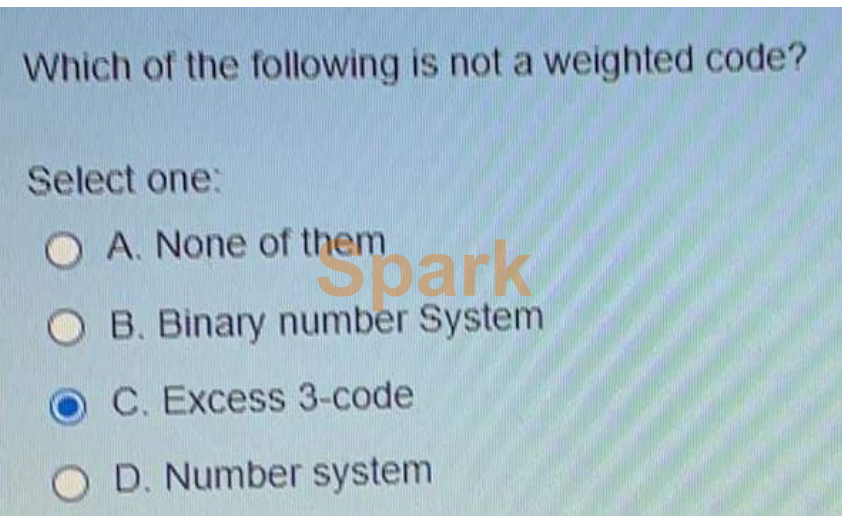

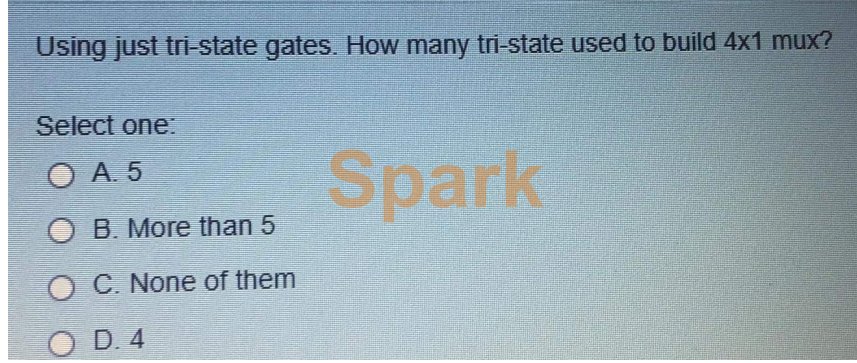

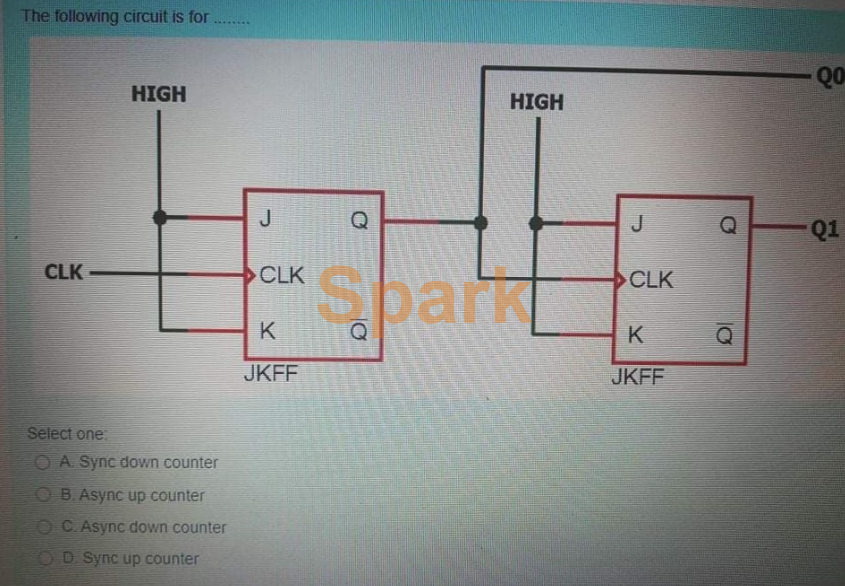

What type of logic gate's behavior does this truth table represent? B CF(A,B,C) 0 0 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 1 1 0 1 0 park 1 1 1 0 0 1 1 1 1 Select one: O A. 3 input AND O B. 3 input XOR O C. 3 input XNOR O D. 3 input OR Which of the following is not a weighted code? Select one O A None of them bark O B. Binary number System C. Excess 3-code O D. Number system Given the function F(X,Y,Z) = XZ + Z(X'+ XY), the equivalent most simplified Boolean representation for F is: Select one: O A. XZ Spark B. None of them O C. Z+YZ D. Z+XYZ How many outputs are required for a 4-bits digital comparator? Select one: O A 8 Spark OB.3 O C.6 D. 4 The following circuit is for QO HIGH HIGH J Q J Q1 CLK CLK > CLK sharh K Q K Q JKEF JKFF Select one A Sync down counter O B. Async up counter C. Async down counter OD Sync up counter Simplification of the Boolean expression AB + ABC + ABCD + ABCDE + ABCDEF yields which of the following results? Select one: O A. AB+CD+EF Spark O B. ABCDEF O C. A+B+C+D OD. AB Using just tri-state gates. How many tri-state used to build 4x1 mux? Select one: O A.5 Spark O B. More than 5 O C. None of them O D.4 A sequential circuits in which the output just depends on the present state called Select one: A. counting machine Spark B. Mannie machine C. Moore machine O D. Mealy machine What is the sequence of binary digits detected by the following Mealy machine? 0/0 1/0 1/0 0/0 a b Shark 1/1 Select one: O A. 110 OB. 011 O C. 100 O D. 101
