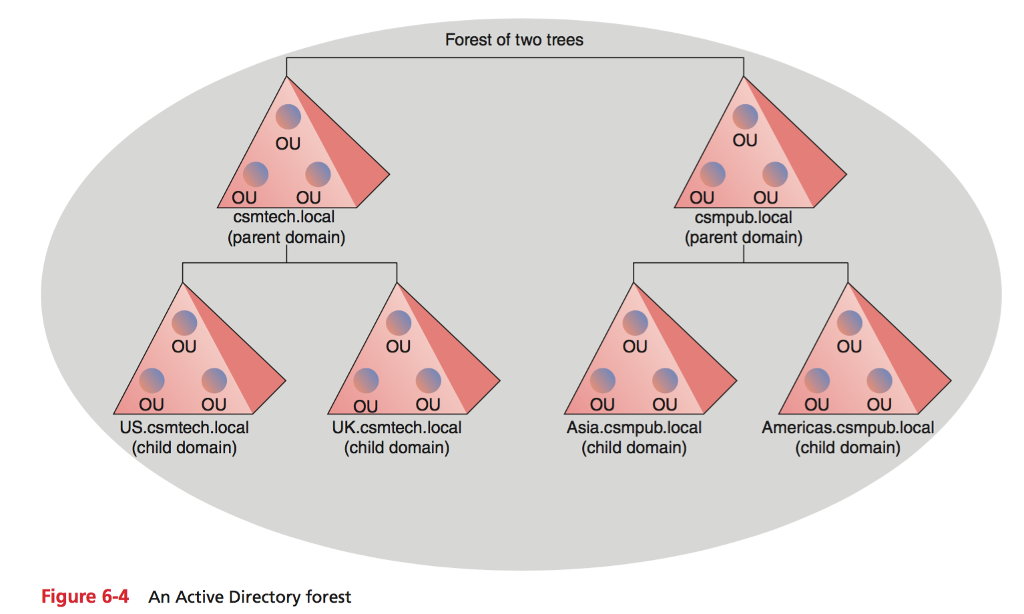

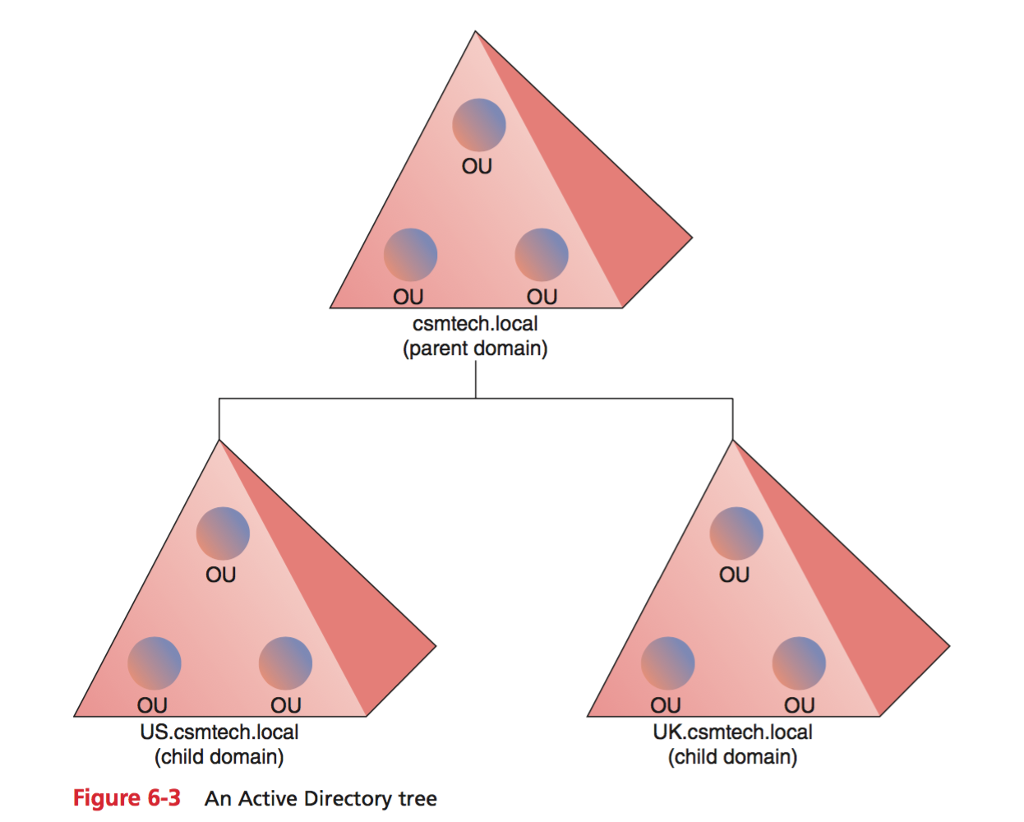

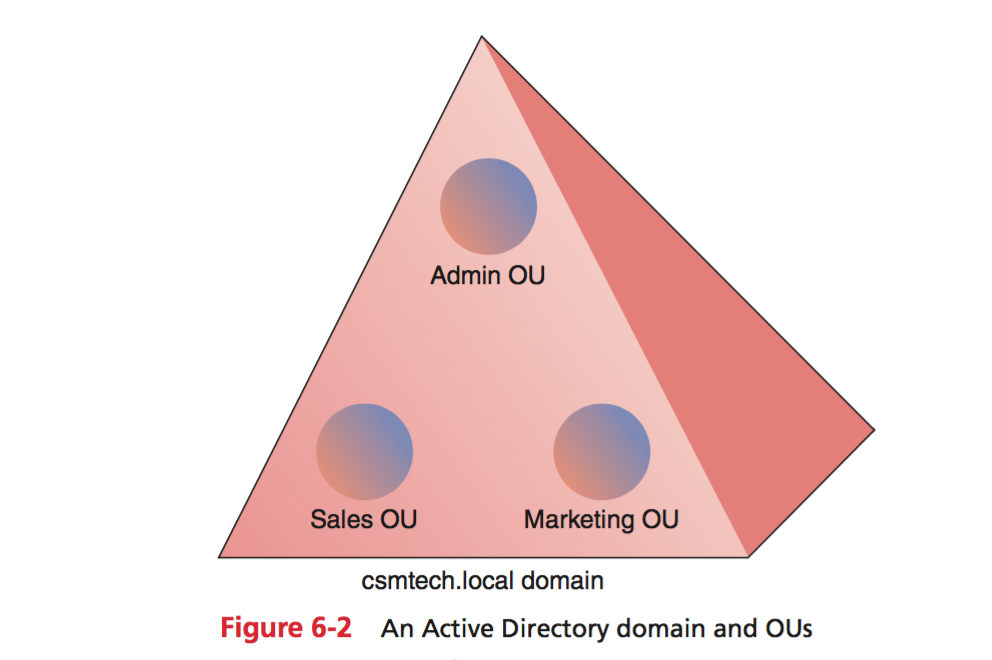

When CSM Tech Publishing started its Windows network almost a year ago, the network was small enough that you simply used the default Users and Computers containers for the user account and computer account objects you created. However, now that the company has grown to more than 50 users and computers, you decide that some structure is needed. You talk to the owner to understand how the business is organized and learn that there are four main departments: Executive, Marketing, Engineering, and Operations. Draw a diagram of the Active Directory structure based on this information, including the types of objects in each container. Include the objects you know about and where these objects should be located, and state whether you need to move any existing objects. Use triangles and circles to represent container objects in your diagram, as shown in Figures 6-1 through 6-4.

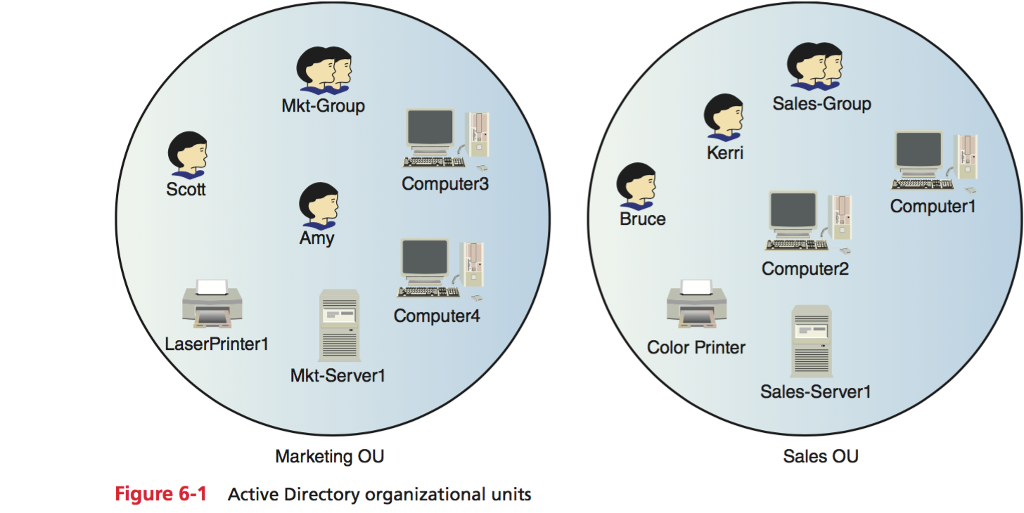

Mkt-Group Sales-Group Kerri Scott Computer3 Computer Bruce Amy Computer2 Computer4 LaserPrinter1 Color Printer Mkt-Servert Sales-Servert Marketing OU Sales OU Figure 6-1 Active Directory organizational units Mkt-Group Sales-Group Kerri Scott Computer3 Computer Bruce Amy Computer2 Computer4 LaserPrinter1 Color Printer Mkt-Servert Sales-Servert Marketing OU Sales OU Figure 6-1 Active Directory organizational units
