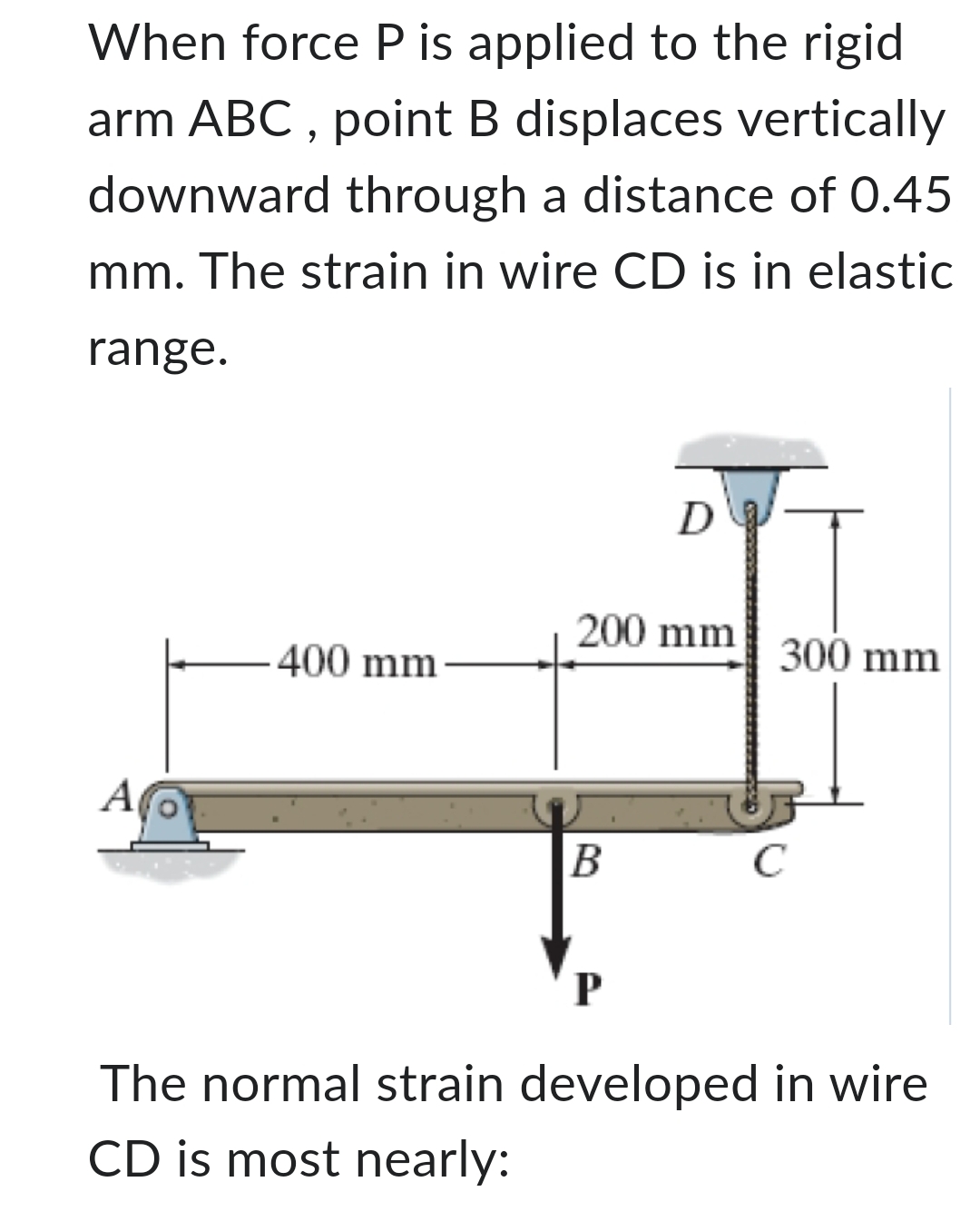

Question: When force P is applied to the rigid arm ABC, point B displaces vertically downward through a distance of 0 . 4 5 mm .

When force P is applied to the rigid arm ABC, point B displaces vertically downward through a distance of 0.45 mm . The strain in wire CD is in elastic range.
The normal strain developed in wire CD is most nearly:
When force P is applied to the rigid arm ABC,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
