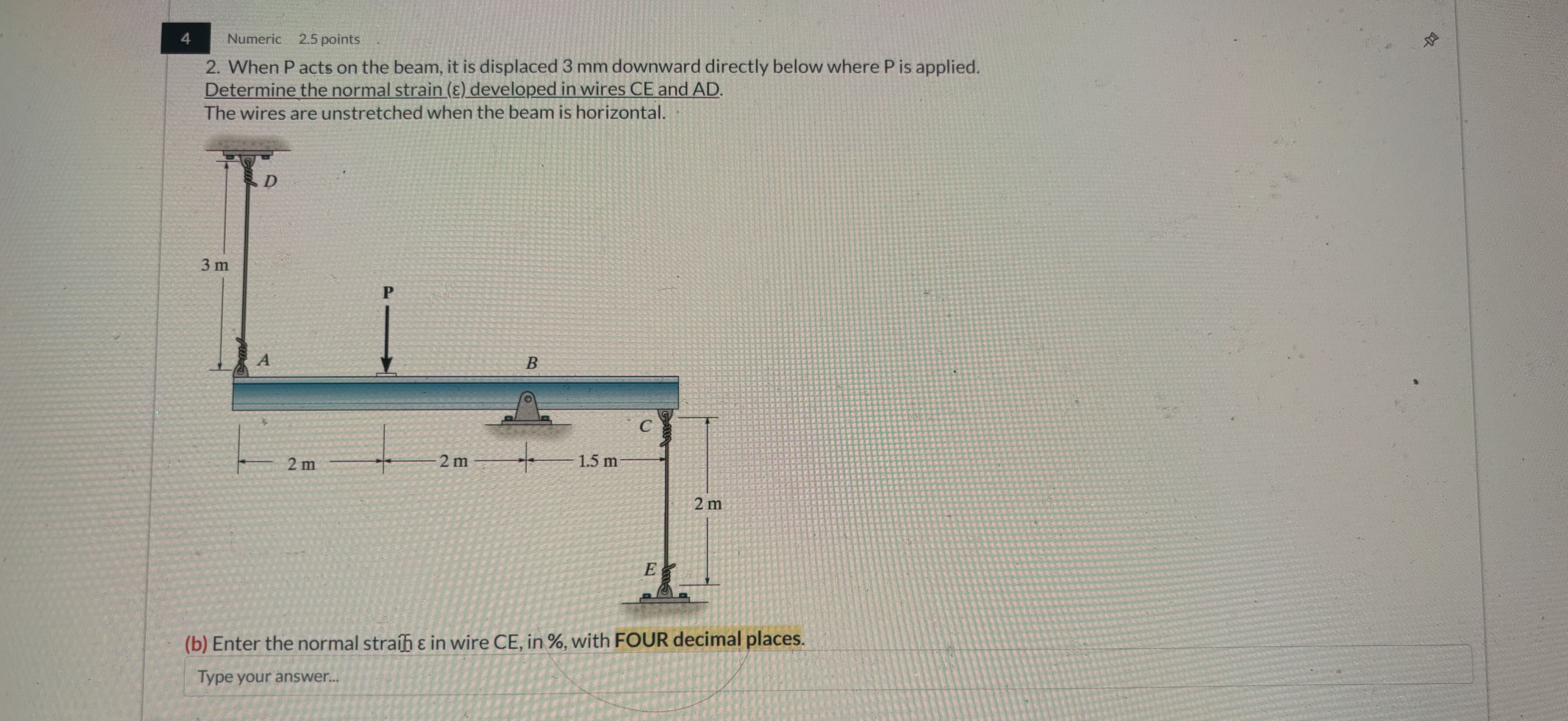

Question: when P acts on the beam it is displaced 3 mm downward directly below where P is applied determine the normal strain developed in wires

when P acts on the beam it is displaced 3 mm downward directly below where P is applied determine the normal strain developed in wires CE and AD
when P acts on the beam it is displaced 3 mm

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
