Question: When the slider block C is in the position shown, the link A B has a clockwise angular velocity of 2 r a d s

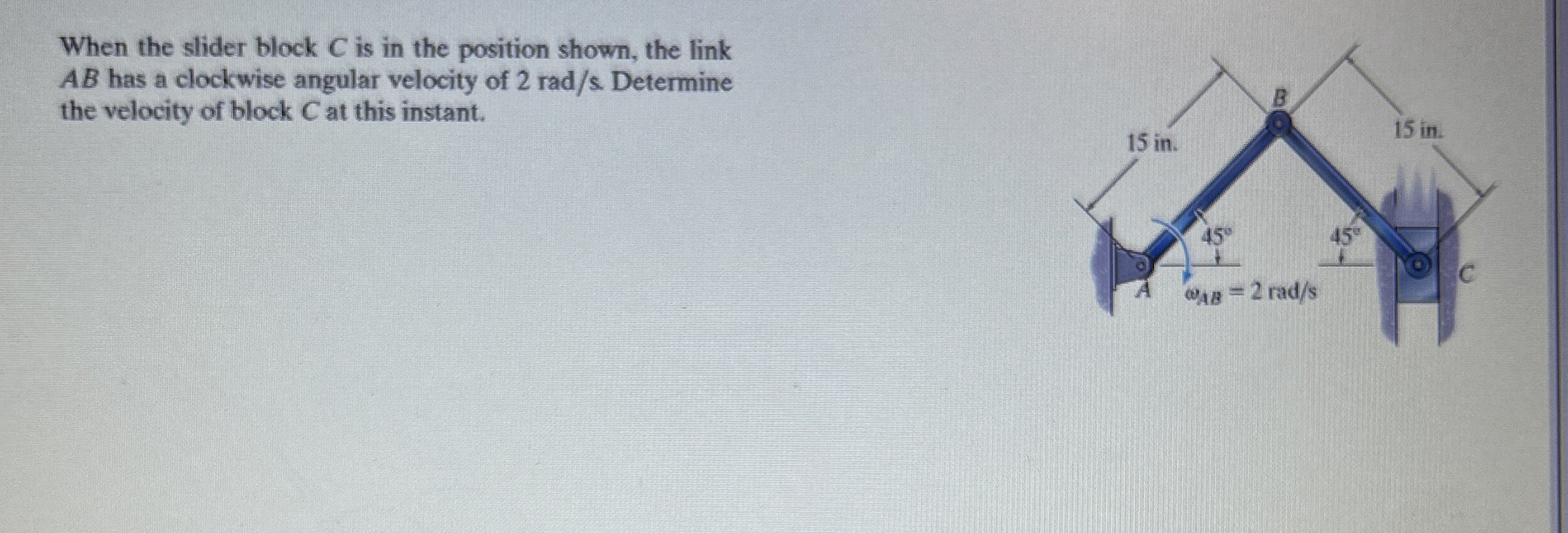

When the slider block C is in the position shown, the link AB has a clockwise angular velocity of 2rads. Determine the velocity of block C at this instant.
When the slider block C is in the position shown,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

When the slider block C is in the position shown, the link AB has a clockwise angular velocity of 2 rad/s. Determine the velocity of block C at this instant. 15 in. A 45 B WAB = 2 rad/s 45 15 in. C

Q:

The system shown in the figure is composed of bar AB which is pin-supported at A and attached to bar BC. The end of bar BC is comected to the slider block C. At the instant shown, the acceleration of...

Q:

If link OA has a clockwise angular velocity of 2 rad/s in the position for which x = 75 mm, determine the velocity of the slider at B by the method of this article. A 300 mm 300 mm B 100 mm -X-

Q:

Problem 1. Consider the system of links depicted in Fig. 1. It is known that at the instant shown, the link DE has a constant angular velocity ofDE= 5k rad/s. Furthermore, assume that all quantities...

Q:

MECH&AE 102 Dynamics of Particles and Rigid Bodies Spring 2023 Problem 1. [25 pts] Consider the system of three links depicted in Fig. 1. At the instant shown, the link AB has a constant angular...

Q:

In the mechanism shown below, link AB rotate with an angular velocity of 5 rad/s. Using "instant center (IC)" method, determine the angular velocity of link BC and the velocity of slider C at this...

Q:

The right-angle link AB has a clockwise angular velocity = 2 rad/sec when in the position shown. Determine the velocity of B with respect to A for this instant. A y 30 12" L 5" B

Q:

In the four-bar linkage shown, control link OA has a counterclockwise angular velocity wo = 10 rad/s dur- ing a short interval of motion. When link CB passes the vertical position shown, point A has...

Q:

At the instant shown, rod CD has a constant clockwise angular velocity WCD- The collar at C is pin connected to CD and slides freely along AB. For WCD - 3 rad/s, a = 0.5 m, b = 0.75 m, 0 = 30. - uy...

Q:

The slider block C moves at 9 . 5 m s down the inclined groove. Determine the angular velocity of link A B at the instant shown measured clockwise. Express your answer using three significant...
