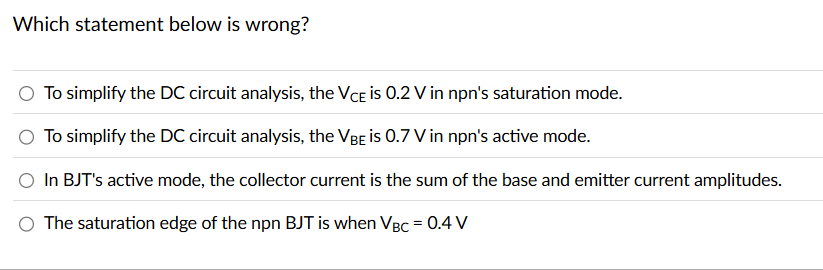

Which statement below is wrong?
To simplify the DC circuit analysis, the \(\mathrm{V}_{\mathrm{CE}}\) is 0.2 V in npn's saturation mode.
To simplify the DC circuit analysis, the \(\mathrm{V}_{\mathrm{BE}}\) is 0.7 V in npn's active mode.
In BJT's active mode, the collector current is the sum of the base and emitter current amplitudes.
The saturation edge of the npn BJT is when \(\mathrm{V}_{\mathrm{BC}}=0.4\mathrm{~V}\)
