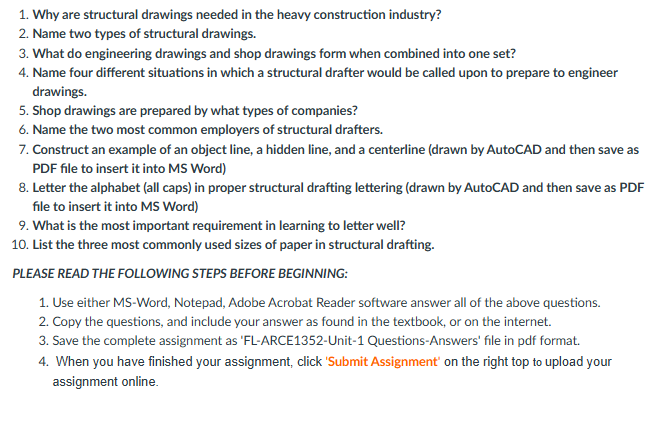

Why are structural drawings needed in the heavy construction industry?

Name two types of structural drawings.

What do engineering drawings and shop drawings form when combined into one set?

Name four different situations in which a structural drafter would be called upon to prepare to engineer

drawings.

Shop drawings are prepared by what types of companies?

Name the two most common employers of structural drafters.

Construct an example of an object line, a hidden line, and a centerline $($drawn by AutoCAD and then save as

PDF file to insert it into MS Word$)$

Letter the alphabet $($all caps$)$ in proper structural drafting lettering $($drawn by AutoCAD and then save as PDF

file to insert it into MS Word$)$

What is the most important requirement in learning to letter well?

List the three most commonly used sizes of paper in structural drafting.

PLEASE READ THE FOLLOWING STEPS BEFORE BEGINNING:

Use either MS$-$Word, Notepad, Adobe Acrobat Reader software answer all of the above questions.

Copy the questions, and include your answer as found in the textbook, or on the internet.

Save the complete assignment as $\text{'}$FL$-$ARCE$1352-$Unit$-1$ Questions$-$Answers' file in pdf format.

When you have finished your assignment, click 'Submit Assignment' on the right top to upload your

assignment online.
