Question: Will rate! For the pipe assembly shown below determine the full stress state ( including transverse shear ) at point A . Show the results

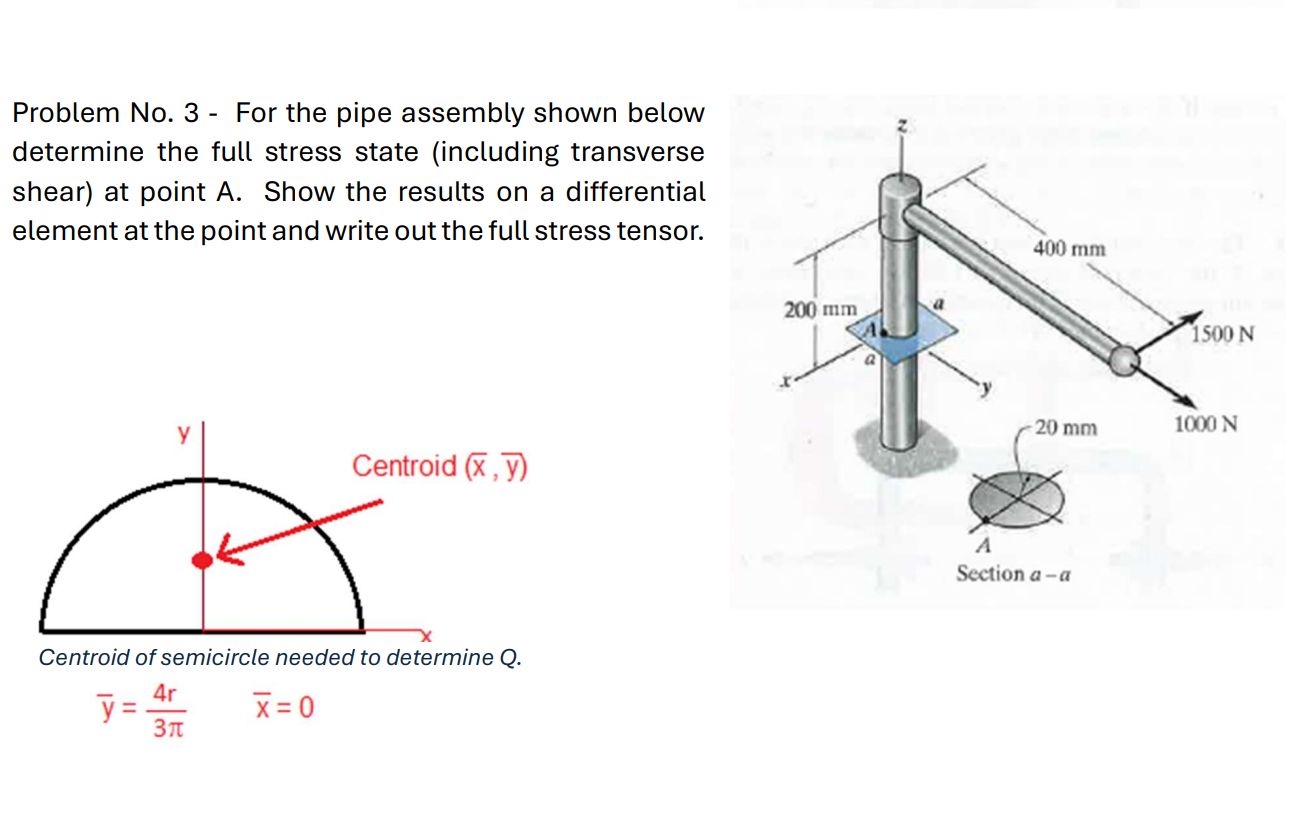

Will rate! For the pipe assembly shown below determine the full stress state (including transverse shear) at point A. Show the results on a differential element at the point and write out the full stress tensor.
y=?3,x=u
Will rate! For the pipe assembly shown below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
