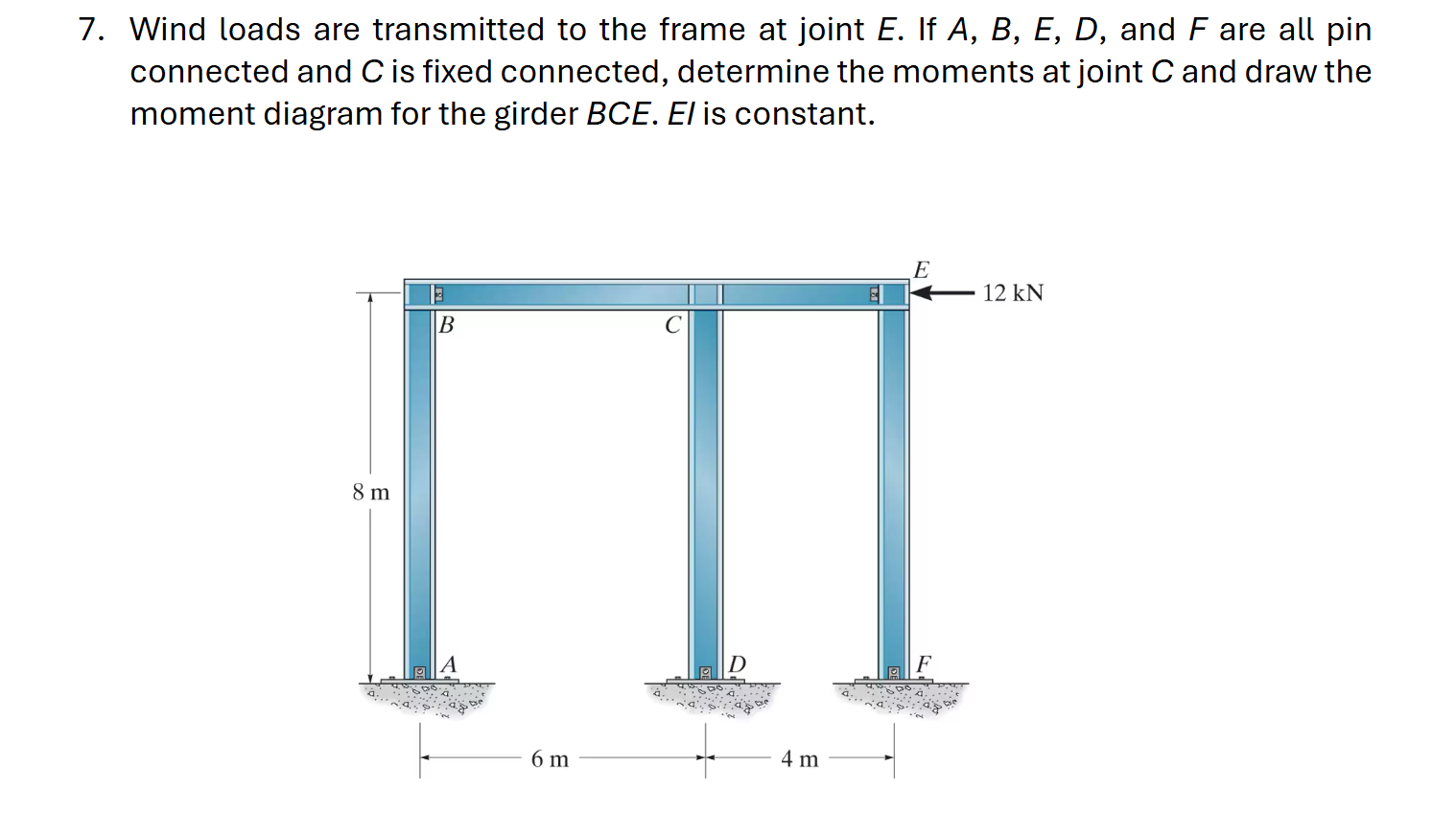

Question: Wind loads are transmitted to the frame at joint E . If A , B , E , D , and F are all pin

Wind loads are transmitted to the frame at joint E. If A,B,E,D, and F are all pin
connected and C is fixed connected, determine the moments at joint C and draw the
moment diagram for the girder BCE. El is constant. USE THE DISPLACEMENT METHOD
Wind loads are transmitted to the frame at joint

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
