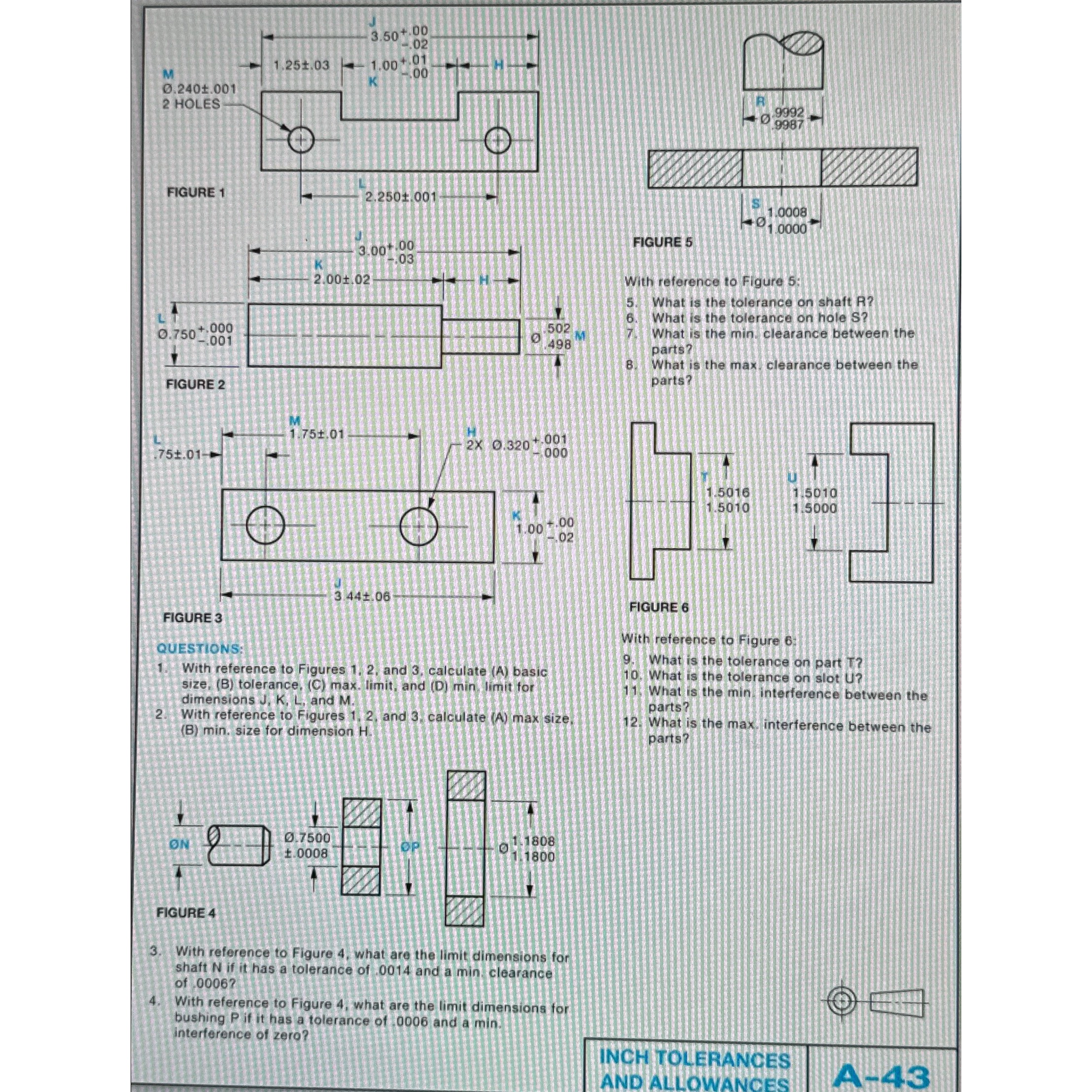

With reference to Figure $5$ :

$5.$ What is the tolerance on shaft R$?$

$6.$ What is the tolerance on hole $ $?$

$7.$ What is the min clearance between the parts?

$8.$ What is the max. clearance between the parts?

With reference to Figure $6$:

QUESTIONS:

With reference to Figures $1,2,$ and $3,$ calculate $($A$)$ basic size, $($B$)$ tolerance, $($C$)$ max. limit$,$ and $($D$)$ min limit for dimensions $J,K,L,$ and $M.$

With reference to Figures $1,2,$ and $3,$ calculate $($A$)$ max size, $($B$)$ min, size for dimension $H.$

With reference to Figure $4,$ what are the limit dimensions for shaft $N$ if it has a tolerance of $\mathrm{.}0014$ and a min. clearance of $\mathrm{.}0006?$

With reference to Figure $4,$ what are the limit dimensions for bushing $P$ if it has a tolerance of $,0006$ and a min. interference of zera?

What is the tolerance on part T$?$

What is the tolerance on slot U$?$

What is the min. interference between the parts?

What is the max. interference between the parts?
