Question: Word Problem (40 pts) 15. A switch in series with the components of a DC RC series circuit is initially open and the capacitor

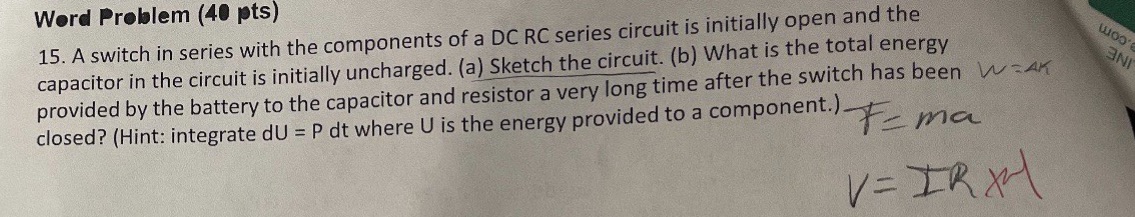

Word Problem (40 pts) 15. A switch in series with the components of a DC RC series circuit is initially open and the capacitor in the circuit is initially uncharged. (a) Sketch the circuit. (b) What is the total energy provided by the battery to the capacitor and resistor a very long time after the switch has been WAK ma closed? (Hint: integrate dU = P dt where U is the energy provided to a component.) F=m V=IR
