Workshop "Deep Mixing"

Problem #$1$

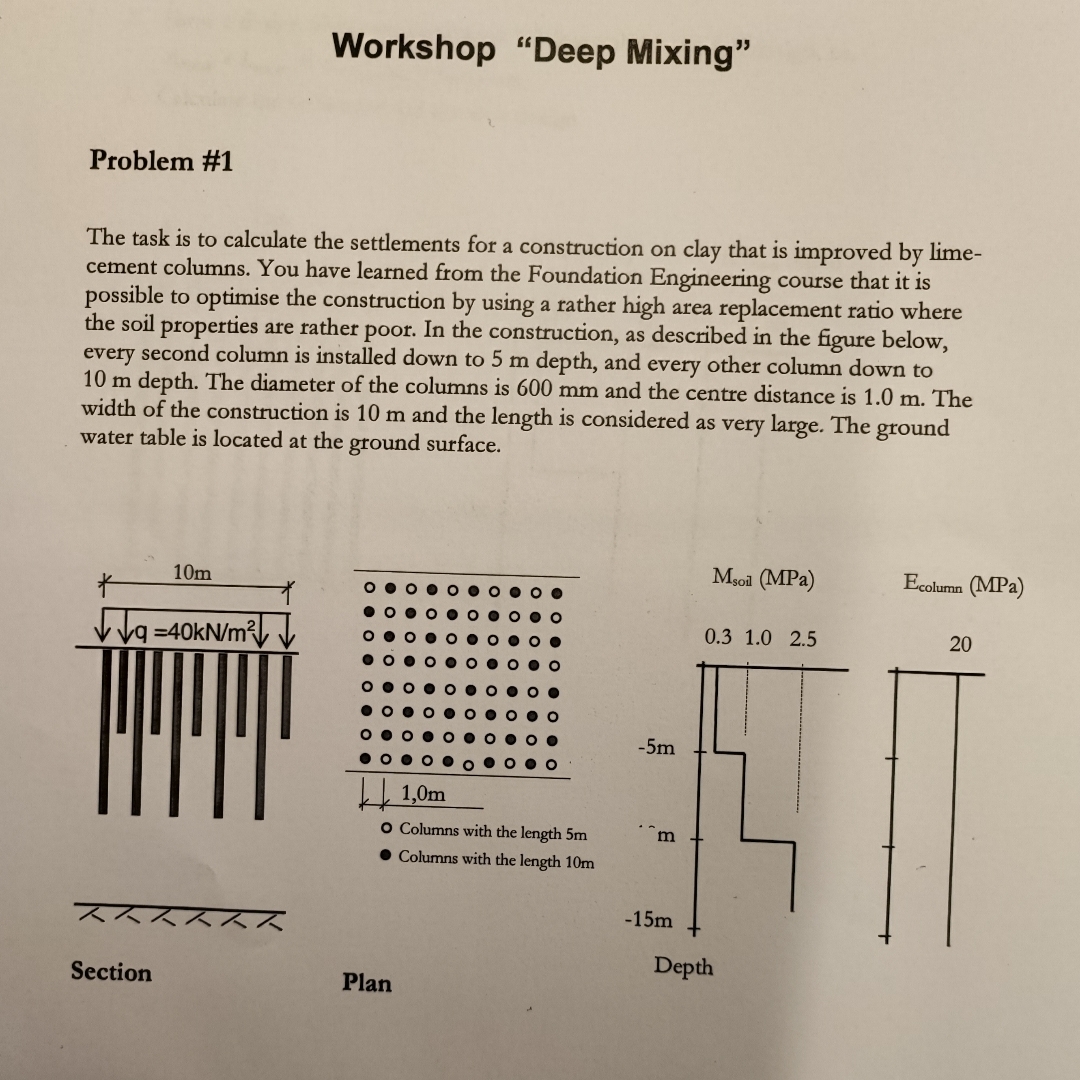

The task is to calculate the settlements for a construction on clay that is improved by limecement columns. You have learned from the Foundation Engineering course that it is possible to optimise the construction by using a rather high area replacement ratio where the soil properties are rather poor. In the construction, as described in the figure below, every second column is installed down to $5$ m depth, and every other column down to $10$ m depth. The diameter of the columns is $600$ mm and the centre distance is $1\mathrm{.}0$ m $.$ The width of the construction is $10$ m and the length is considered as very large. The ground water table is located at the ground surface.

$M_{\text{s}\text{o}\text{i}\text{l}}(MPa)$

$E_{\text{c}\text{o}\text{l}\text{u}\text{m}\text{n}}(MPa)$
