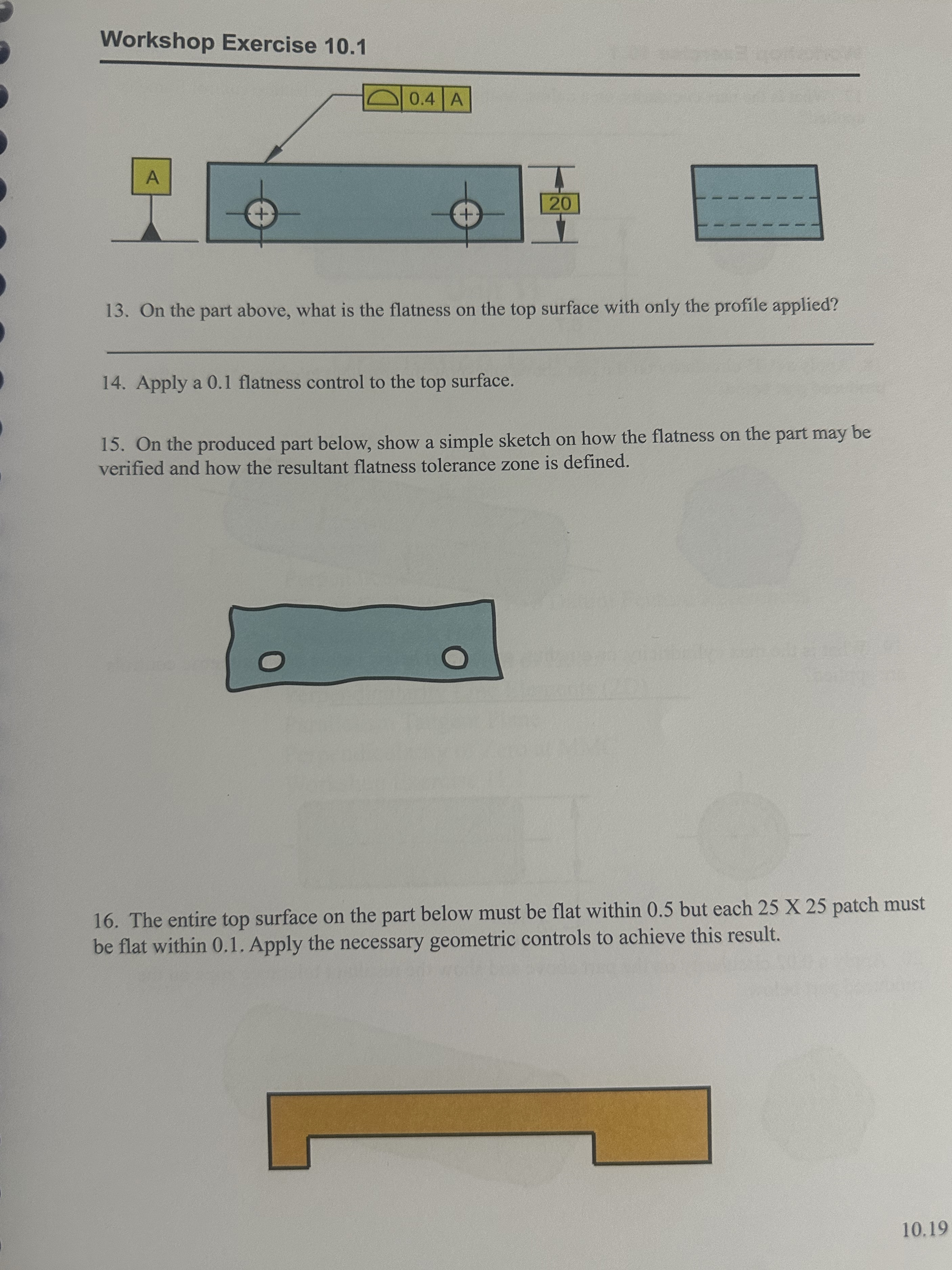

Workshop Exercise $10\mathrm{.}1$

$13.$ On the part above, what is the flatness on the top surface with only the profile applied?

$14.$ Apply a $0\mathrm{.}1$ flatness control to the top surface.

$15.$ On the produced part below, show a simple sketch on how the flatness on the part may be verified and how the resultant flatness tolerance zone is defined.

$16.$ The entire top surface on the part below must be flat within $0\mathrm{.}5$ but each $2525$ patch must be flat within $0\mathrm{.}1.$ Apply the necessary geometric controls to achieve this result.

$10\mathrm{.}19$
