Question: Write a Boolean SOP expression for this truth table, then simplify that expression as much as possible. table [ [ A , B ,

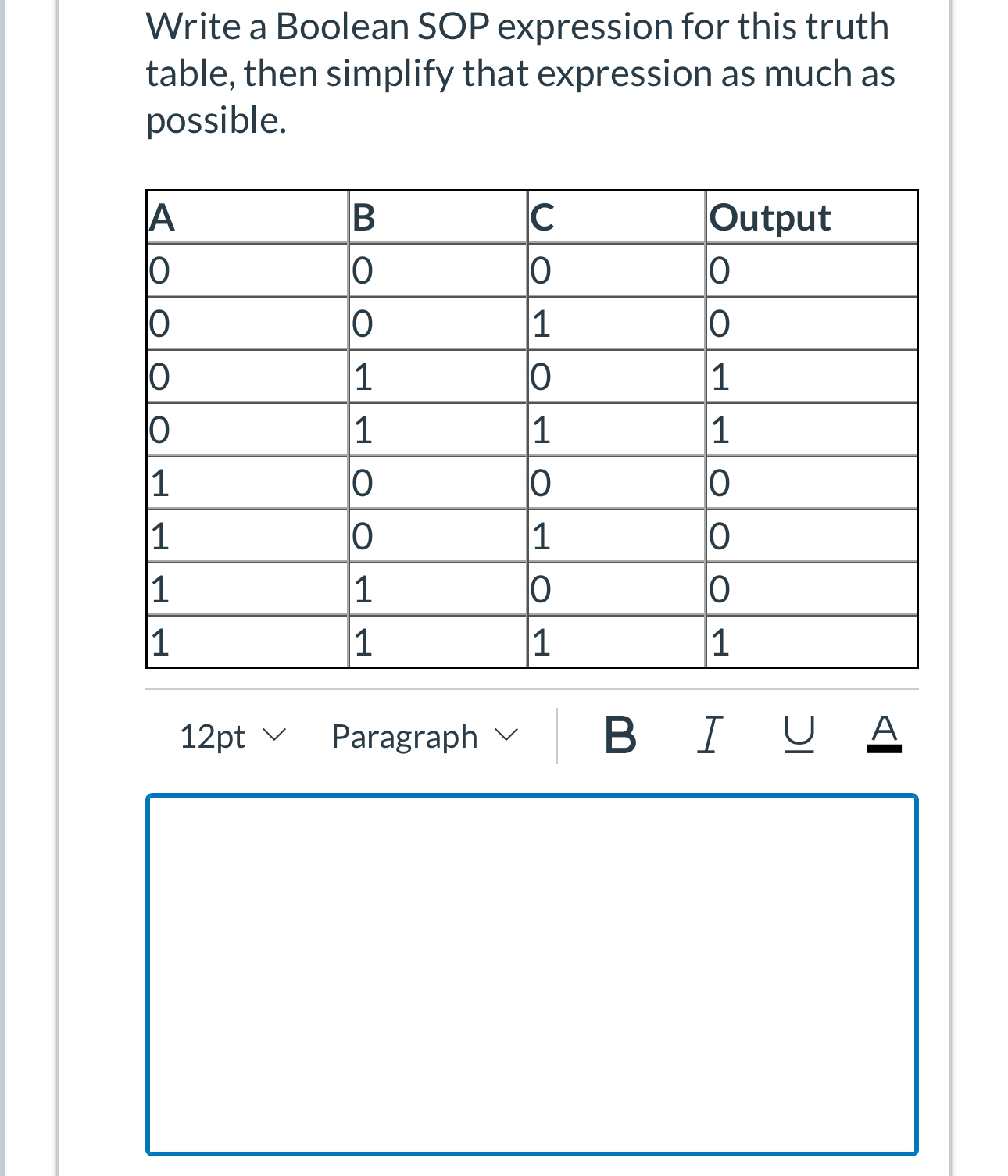

Write a Boolean SOP expression for this truth table, then simplify that expression as much as possible.
\table[[A,B,C,Output],[0,0,0,0],[0,0,1,0],[0,1,0,1],[0,1,1,1],[1,0,0,0],[1,0,1,0],[1,1,0,0],[1,1,1,1]]
12pt
Paragraph
B
Write a Boolean SOP expression for this truth

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
