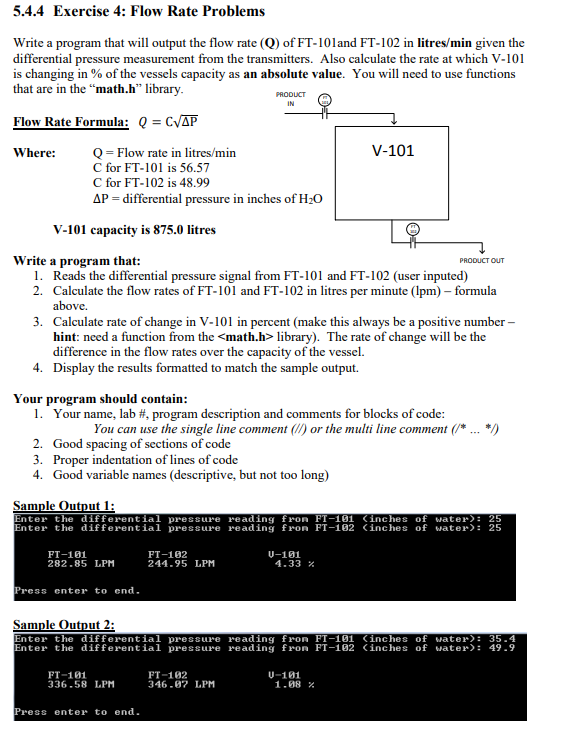

write a c$++$ program using printf and scanf math.h and stdio.h $5\mathrm{.}4\mathrm{.}4$ Exercise $4$: Flow Rate Problems

Write a program that will output the flow rate $($Q$)$ of FT$-101$ and FT$-102$ in litres$/$min given the

differential pressure measurement from the transmitters. Also calculate the rate at which V$-101$

is changing in $\%$ of the vessels capacity as an absolute value. You will need to use functions

that are in the "math.h$"$ library.

Flow Rate Formula: $Q=C\sqrt[\phantom{2}]{}P$

Where:

$Q=$ Flow rate in litres $\frac{?}{\text{m}\text{i}\text{n}}$

C for FT$-101$ is $56\mathrm{.}57$

C for FT$-102$ is $48\mathrm{.}99$

$P=$ differential pressure in inc

V$-101$ capacity is $875\mathrm{.}0$ litres

Write a program that:

Reads the differential pressure signal from FT$-101$ and FT$-102($user inputed$)$

Calculate the flow rates of FT$-101$ and FT$-102$ in litres per minute $($lpm$)-$ formula

above.

Calculate rate of change in $V-101$ in percent $($make this always be a positive number $-$

hint: need a function from the $$ math.h $>$ library$).$ The rate of change will be the

difference in the flow rates over the capacity of the vessel.

Display the results formatted to match the sample output.

Your program should contain:

Your name, lab #$,$ program description and comments for blocks of code:

You can use the single line comment $(//)$ or the multi line comment $(/*...*/)$

Good spacing of sections of code

Proper indentation of lines of code

Good variable names $($descriptive$,$ but not too long$)$

Sample Output $1$:

Sample Output $2$:
