Question: Write a G code to remove the layer 1 2 3 4 5 6 on a CNC turning machine, the cutting conditions are

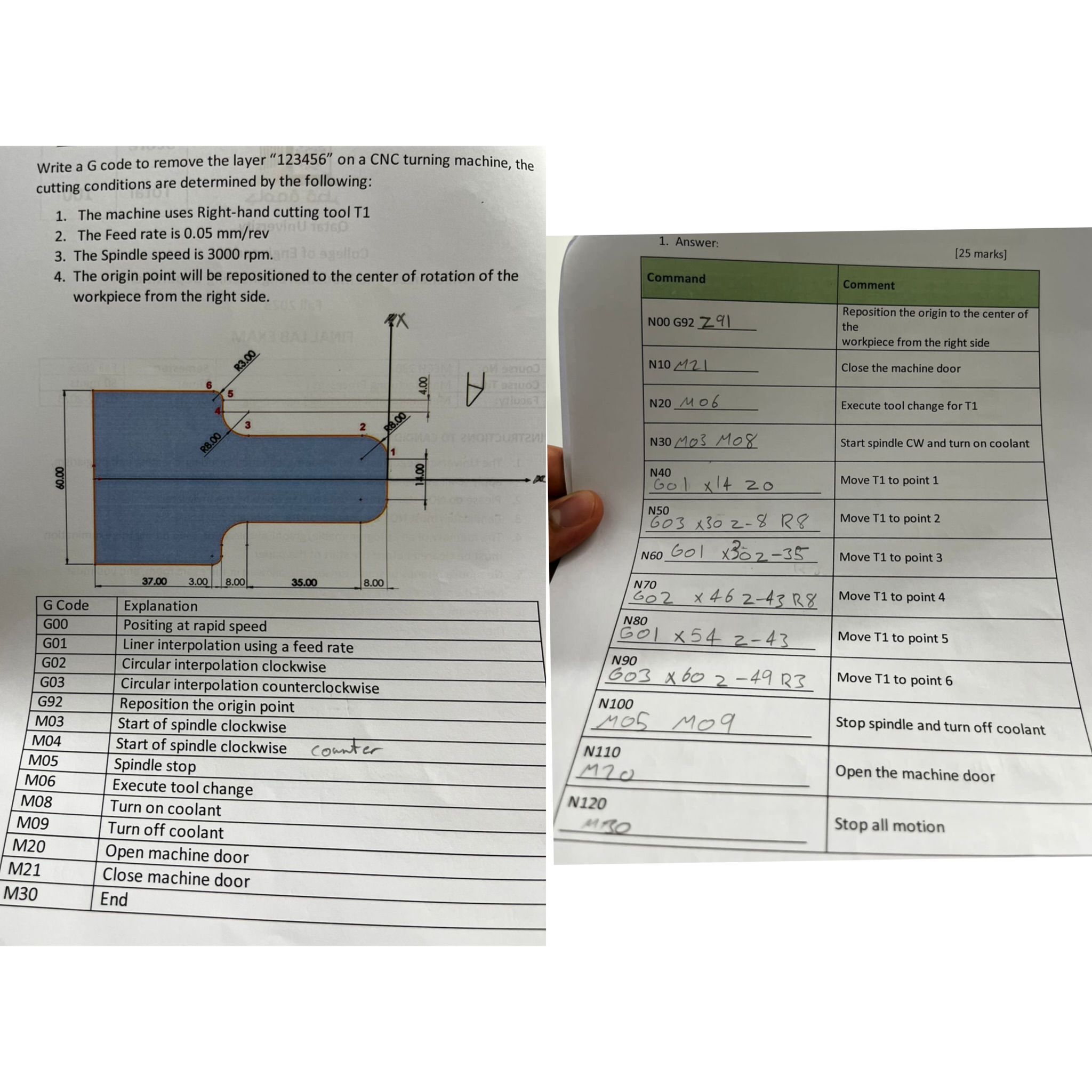

Write a G code to remove the layer "123456" on a CNC turning machine, the cutting conditions are determined by the following:
The machine uses Right-hand cutting tool T1
The Feed rate is 0.05mmrev
The Spindle speed is 3000 rpm .
The origin point will be repositioned to the center of rotation of the workpiece from the right side.
\table[[G Code,Explanation],[G00,Positing at rapid speed],[G01,Liner interpolation using a feed rate],[G02,Circular interpolation clockwise],[G03,Circular interpolation counterclockwise],[G92,Reposition the origin point],[M03,Start of spindle clockwise],[M04,Start of spindle clockwise Counter],[M05,Spindle stop],[M06,Execute tool change],[M08,Turn on coolant],[M09,Turn off coolant]]
\table[[M20,Open machine door],[M21,Close machine door],[M30,End]]
Write a G code to remove the layer " 1 2 3 4 5 6

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
