Write a MIPS program to rearrange an array such that even positioned numbers are greater

than odd.

$$ Prompt the user to input a number from $0$ to $50.$ Store it in variable X

$$ Prompt the user to input a number from $0$ to $50.$ Store it in variable Y

$$ Exit if the number is not an integer and not within the desired range

$$ Create a random array of X integers where the max value of the integer is Y$.$

$$ You will use the syscall procedure SysAlloc $(9)$ in SysCalls.asm to dynamically

allocate an array with X elements in the heap. This is similar to the malloc$()$

function.

$$ Then you will use the syscall RandomIntRange $(42)$ in SysCalls.asm to generate

random integers.

$1$

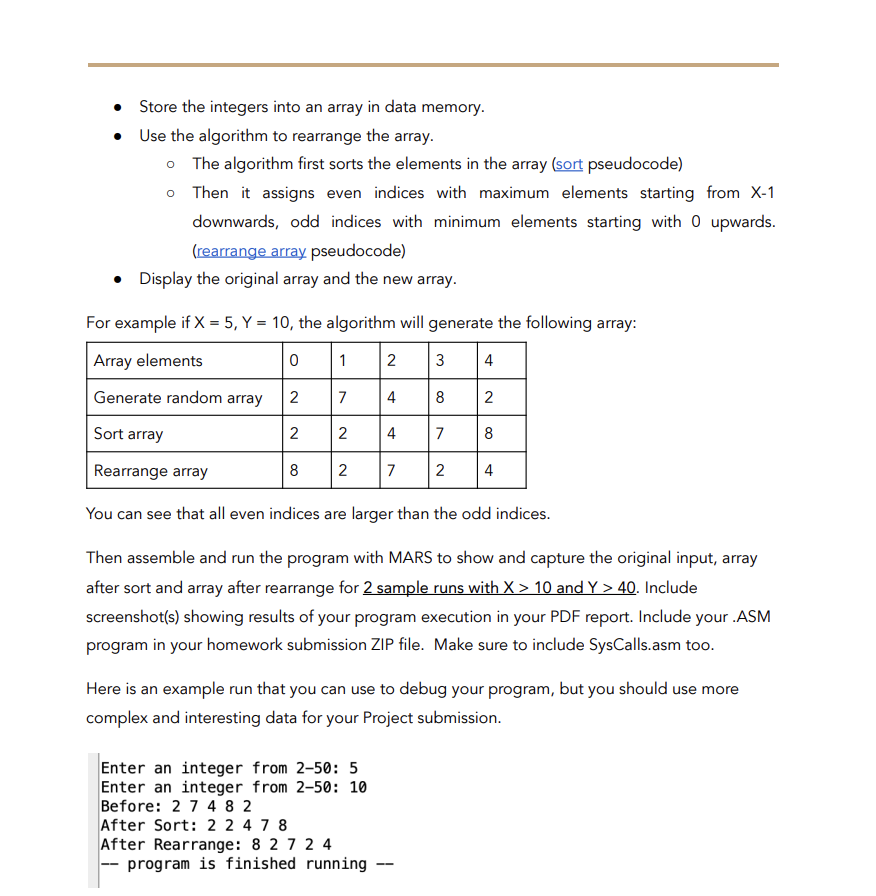

$$ Store the integers into an array in data memory.

$$ Use the algorithm to rearrange the array.

$$ The algorithm first sorts the elements in the array $($sort pseudocode$)$

$$ Then it assigns even indices with maximum elements starting from X$-1$

downwards, odd indices with minimum elements starting with $0$ upwards.

$($rearrange array pseudocode$)$

$$ Display the original array and the new array.

For example if X $=5,$ Y $=10,$ the algorithm will generate the following array:

Array elements $01234$

Generate random array $27482$

Sort array $22478$

Rearrange array $82724$

You can see that all even indices are larger than the odd indices.

Then assemble and run the program with MARS to show and capture the original input, array

after sort and array after rearrange for $2$ sample runs with X $>10$ and Y $>40.$ Include

screenshot$($s$)$ showing results of your program execution in your PDF report. Include your $.$ASM

program in your homework submission ZIP file. Make sure to include SysCalls.asm too.

Here is an example run that you can use to debug your program, but you should use more

complex and interesting data for your Project submission.
