Write a program in C language that will take an input string from the user and use the finite state machine developed in the lecture to process the string to determine if all delimiters match correctly or not. The string delimiters are curly braces, parentheses, and square brackets. Only in C language. no CPP$.$ no C$++.$

There should be $8$ separate files$/$codes

cstack.c

cstack.h

util.c

util.h

fsm$.$c

fsm$.$h

main.c

boolean.h

Please help. My codes are n$\text{'}$t working and I need an explanation esp for $.$h files.

Preliminary Analysis for utilities such as is$\_$open$(),$ is$\_$close$()$ and is$\_$brother$()$ for delimiter check FSM

is$\_$open$()$

Will receive a single character passed to it and return boolean value TRUE or FALSE indicating whether

or not it is an open delimiter.

If character is open parenthesis, open curly brace, or open square bracket

Return boolean value TRUE to indicate character is open delimiter

Otherwise

Return boolean value FALSE to indicate character is not an open delimiter

is$\_$close$()$

Will receive a single character passed to it and return boolean value TRUE or FALSE indicating whether

or not it is a close delimiter.

If character is close parenthesis, close curly brace, or close square bracket

Return boolean value TRUE to indicate character is close delimiter

Otherwise

Return boolean value FALSE to indicate character is not close delimiter

is$\_$brother$()$

Will receive a two characters passed to it and return boolean value TRUE or FALSE indicating whether or

not they are matching open$/$close pair.

Note: First character will be open delimiter and second character will be close delimiter

If open delimiter is left parenthesis and close is right parenthesis OR open delimiter is a left curly brace

and close delimiter is right curly brace OR open delimiter is a left square bracket and close delimiter is

right square bracket

Return boolean value TRUE to indicate they are a matching pair $($ie brothers$)$

Otherwise

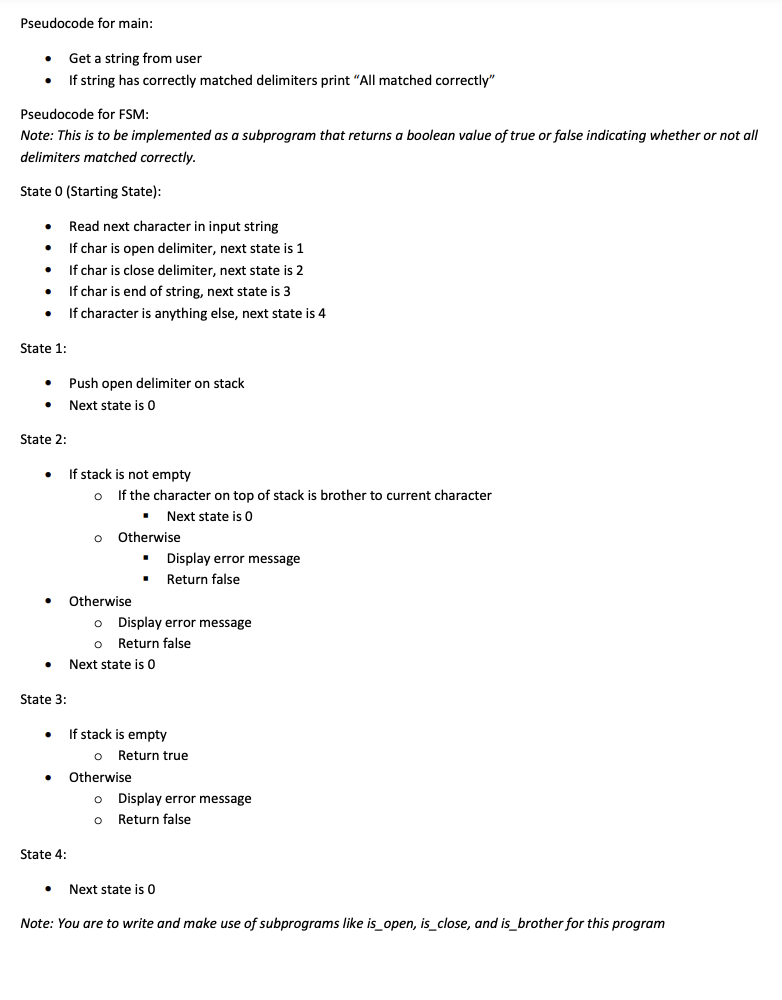

Return boolean value FALSE to indicate they are not a matching pair $($ie not brothers$)$Pseudocode for main:

Get a string from user

If string has correctly matched delimiters print "All matched correctly"

Pseudocode for FSM:

Note: This is to be implemented as a subprogram that returns a boolean value of true or false indicating whether or not all

delimiters matched correctly.

State $0($Starting State$)$:

Read next character in input string

If char is open delimiter, next state is $1$

If char is close delimiter, next state is $2$

If char is end of string, next state is $3$

If character is anything else, next state is $4$

State $1$:

Push open delimiter on stack

Next state is $0$

State $2$:

If stack is not empty

If the character on top of stack is brother to current character

Next state is $0$

Otherwise

Display error message

Return false

Otherwise

Display error message

Return false

Next state is $0$

State $3$:

If stack is empty

Return true

Otherwise

Display error message

Return false

State $4$:

Next state is $0$

Note: You are to write and make use of subprograms like is$\_$open, is$\_$close, and is$\_$brother for this program
