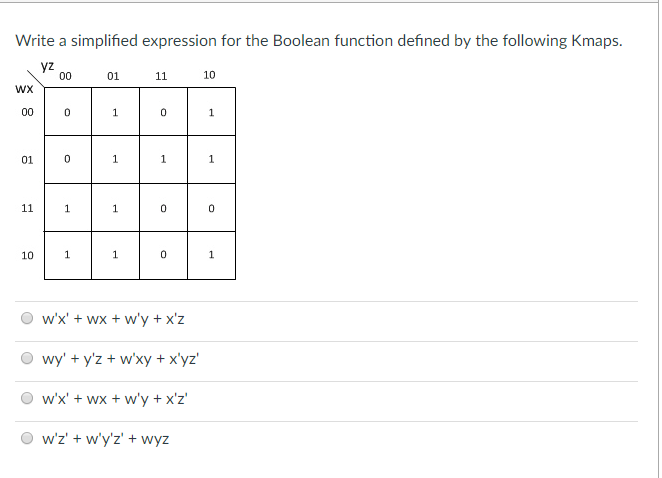

Question: Write a simplified expression for the Boolean function defined by the following Kmaps. w'x' + wx + w'y + x'z wy' + y'z + w'xy

Write a simplified expression for the Boolean function defined by the

Write a simplified expression for the Boolean function defined by the following Kmaps. w'x' + wx + w'y + x'z wy' + y'z + w'xy + x'yz' w'x' + wx + w'y + x'z' w'z' + w'y'z' + wyz

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

answer all three question step by step 5. Simplify the following functional expressions using Boolean algebra and its identities. List the identity used at each step. (3+3) a) F (x, y, z) = (x + y +...

Principles of Computer Organization 2 Write a simplified expression for the Boolean function defined by the following truth table using K- map: K-Map YZ WX -- W X Y Z 0 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1...

Principles of Computer Organization 3. Write a simplified expression for the Boolean function defined by the following truth table using K-map: (Note: X is a don't care term) Na F(W, X, Y, Z) 1 0...

37. Write a simplified expression for the Boolean function defined by each of the following Kmaps: 1. a) X yz 00 00 01 11 10 0 X 0 0 1 1 1 1 X 1 2. b) yz WX 00 00 01 11 10 00 1 1 1 1 01 X 0 1 X 11 0...

38. Write a simplified expression for the Boolean function defined by each of the following Kmaps: 1. a) X yz 0 00 00 01 1 11 0 10 1 1 0 0 1 1 2. b) yz WX 00 01 11 10 00 0 0 1 0 50 01 X 0 0 X 11 X 1...
