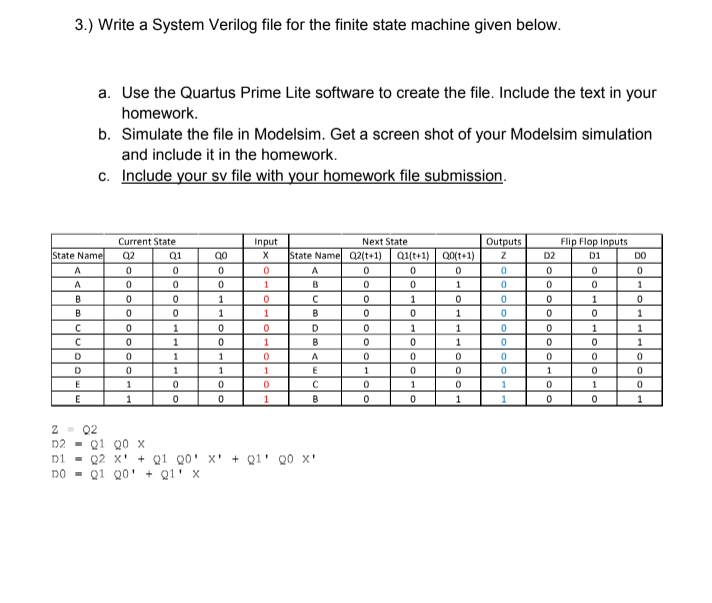

Write a System Verilog file for the finite state machine given below.

a$.$ Use the Quartus Prime Lite software to create the file. Include the text in your

homework.

b$.$ Simulate the file in Modelsim. Get a screen shot of your Modelsim simulation

and include it in the homework.

c$.$ Include your sv file with your homework file submission.

Z $=$ Q$2$

D$2=$ Q$1$ Q$0$ X

D$1=$ Q$2$ X$\text{'}+$ Q$1$ Q$0\text{'}$ X$\text{'}+$ Q$1\text{'}$ Q$0$ X$\text{'}$

D$0=$ Q$1$ Q$0\text{'}+$ Q$1\text{'}$ X

Input Outputs

State Name Q$2$ Q$1$ Q$0$ X State Name Q$2($t$+1)$ Q$1($t$+1)$ Q$0($t$+1)$ Z D$2$ D$1$ D$0$

A $0000$ A $0000000$

A $0001$ B $0010001$

B $0010$ C $0100010$

B $0011$ B $0010001$

C $0100$ D $0110011$

C $0101$ B $0010001$

D $0110$ A $0000000$

D $0111$ E $1000100$

E $1000$ C $0101010$

E $1001$ B $0011001$
