Question: write a truth table, simplify circuit, redraw the simplified circuit. - 02-02-2011 - Schematic Editor View Alysis Interactive TM Tools Help ST X. + 2015

write a truth table, simplify circuit, redraw the simplified circuit.

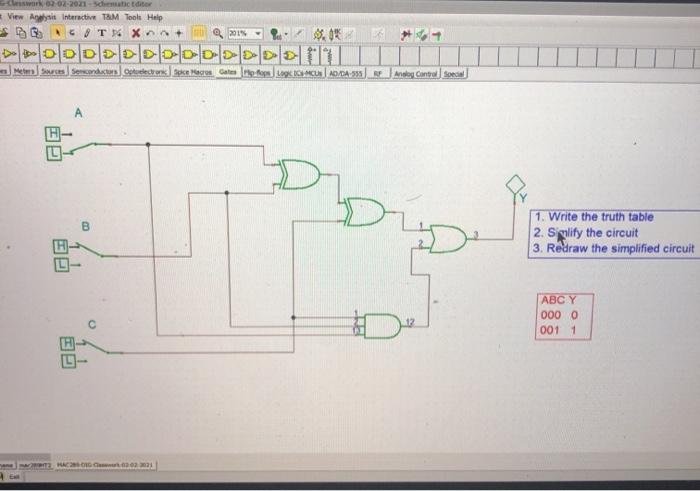

- 02-02-2011 - Schematic Editor View Alysis Interactive TM Tools Help ST X. + 2015 Mehr Sare Se puderer: Space Pages Care Prepage to CUM ADDA-558) May Compared be B E 1. Write the truth table 2. Sipilify the circuit 3. Redraw the simplified circuit ABC Y 0000 0011 0233

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Task 1 : Using the given expression do the following tasks: Given Expression: x Y + Y ( Y + Z ) + Y ( Y + Z ) Design the corresponding logic circuit in Logisim. Write the truth table. Simplify the...

For = ABC+ BCD + ABC, write the truth table. Simplify using Karnaugh map and realize the function using NAND gates only. For = ABC+ BCD' + A'BC, write the truth table. Simplify using Karnaugh map and...

digital system design question Q3: For F= A.B.C+B.C.D+.B.C Write the truth table, Simplify using K-MAP and implement using NAND gates only

Using Boolean algebra, simplify the following expressions. Build the Truth Table for F 1 and F 4 functions. Draw the circuit diagram for both unsimplified and simplified equations of F 2 andF 3 How...

( a ) Write the Boolean function & truth table that resembles the circuit shown in Fig. 2 Please show your calculations and don't provide only final answers Question 1 : [ ( x + x ' * y + x ' * y ' )...

please state your calculations clearly. and make this understandable. thanks! Question 1: Simplify the following Boolean function using the Karnaugh Map. Sketch the circuit diagram for each minimized...

Lab 3: Chapter 4, Gates and Circuits 152 marks in all of the problems, you must show your work to qualify for the mark. Type you in this worksheytatter wachuud export the compitet werden mit Suite...

Using the full adder circuit truth table below, (a) Implement the full adder using a PLA. (b) You can implement a full adder using fewer gates than the PLA. Show a simpler implementation than the...

For Q1 and Q2 write a Truth Table for the statement. (9.2 & 9.3) p V (qQp) NH p V ( q V ~p) 3. If I write 1925 as 1916 = 2510, write the only year in the 21st Century that fits my pattern. 4 . Prove...

Please finish B. Express the truth table in Sum-of-Products form. Do not simplify the equations. Picture a typical 7-segment LED display (e.g. one digit of a typical digital alarm clock). Your task...
