Question: write G code if process starts from point 2 Using Tool Radius Compensation N 0 1 0 G 9 0 G 7 1 ; Absolute

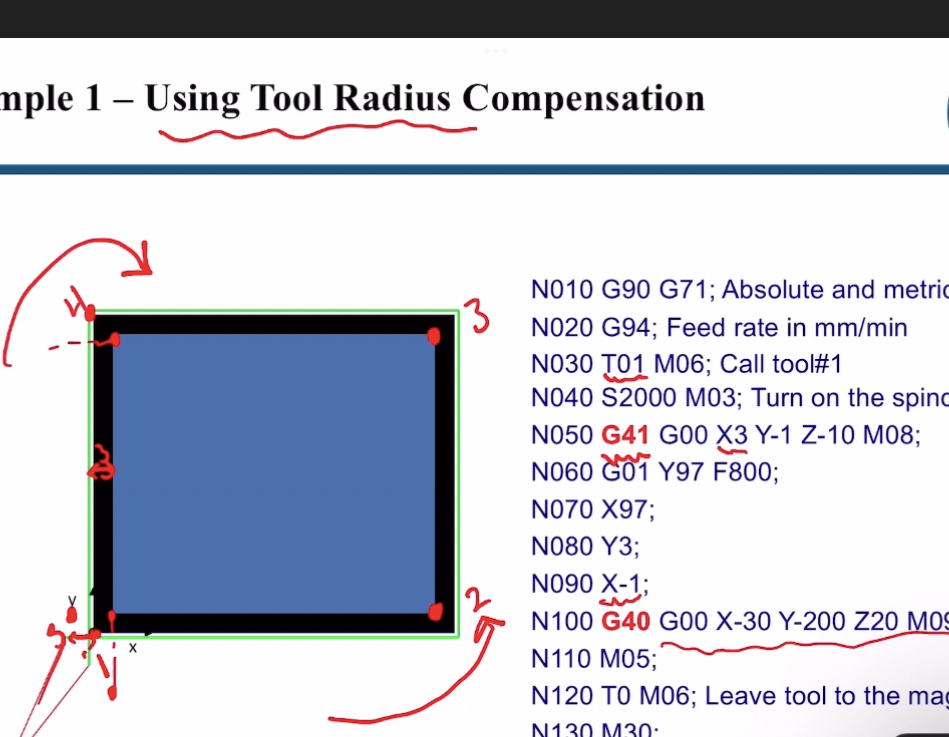

write G code if process starts from point 2
Using Tool Radius Compensation
N010 G90 G71; Absolute and metri
N020 G94; Feed rate in mm/min
N030 T01 M06; Call tool#1
N040 S2000 M03; Turn on the spine
N050 G41 G00 X3 Y-1 Z-10 M08;
N060 G01 Y97 F800;
N070 X97;
N080 Y3;
N090 X-1;
N100 G40 G00 X-30 Y-200 Z20 M09
N110 M05;
N120 T0 M06; Leave tool to the ma
N130 M30
write G code if process starts from point 2 Using
