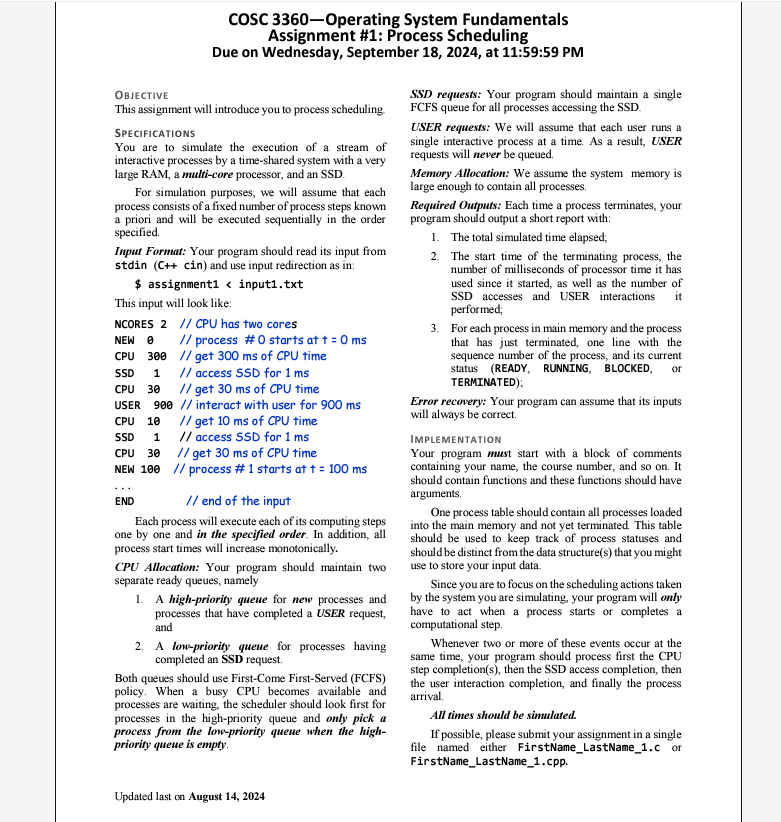

WRITE IN C OR C$++.$

Assignment #$1$: Process Scheduling

Due on Wednesday, September $18,2024,$ at $11$:$59$:$59$ PM

ObJeCTIVE

This assignment will introduce you to process scheduling.

SPECIFICATIONS

You are to simulate the execution of a stream of

interactive processes by a time$-$shared system with a very

large RAM, a multi$-$core processor, and an SSD$.$

For simulation purposes, we will assume that each

process consists of a fixed number of process steps known

a priori and will be executed sequentially in the order

specified.

Input Format: Your program should read its input from

stdin $($C$++$ cin$)$ and use input redirection as in:

$ assignment$1$ input$1.$txt

This input will look like:

Each process will execute each of its computing steps

one by one and in the specified order. In addition, all

process start times will increase monotonically.

CPU Allocation: Your program should maintain two

separate ready queues, namely

A high$-$priority queue for new processes and

processes that have completed a USER request,

and

A low$-$priority queue for processes having

completed an SSD request.

Both queues should use First$-$Come First$-$Served $($FCFS$)$

policy. When a busy CPU becomes available and

processes are waiting, the scheduler should look first for

processes in the high$-$priority queue and only pick a

process from the low$-$priority queue when the high$-$

priority queue is empty.

SSD requests: Your program should maintain a single

FCFS queue for all processes accessing the SSD$.$

USER requests: We will assume that each user runs a

single interactive process at a time. As a result, USER

requests will never be queued.

Memory Allocation: We assume the system memory is

large enough to contain all processes.

Required Outputs: Each time a process terminates, your

program should output a short report with:

The total simulated time elapsed;

The start time of the terminating process, the

number of milliseconds of processor time it has

used since it started, as well as the number of

SSD accesses and USER interactions it

performed;

For each process in main memory and the process

that has just terminated, one line with the

sequence number of the process, and its current

status $($READY$,$ RUNNING, BLOCKED, or

TERMINATED$)$;

Error recovery: Your program can assume that its inputs

will always be correct.

IMPLEMENTATION

Your program must start with a block of comments

containing your name, the course number, and so on$.$ It

should contain functions and these functions should have

arguments.

One process table should contain all processes loaded

into the main memory and not yet terminated. This table

should be used to keep track of process statuses and

should be distinct from the data structure$($s$)$ that you might

use to store your input data.

Since you are to focus on the scheduling actions taken

by the system you are simulating, your program will only

have to act when a process starts or completes a

computational step.

Whenever two or more of these events occur at the

same time, your program should process first the CPU

step completion$($s$),$ then the SSD access completion, then

the user interaction completion, and finally the process

arrival.

All times should be simulated.

If possible, please submit your assignment in a single

file named either FirstName$\_$LastName$\_1.$c or

FirstName$\_$LastName$\_1.$cpp$.$
