Question: Write m - file ( s ) for the following tasks 1 ) Obtain the unit - step response of a first order system analytically

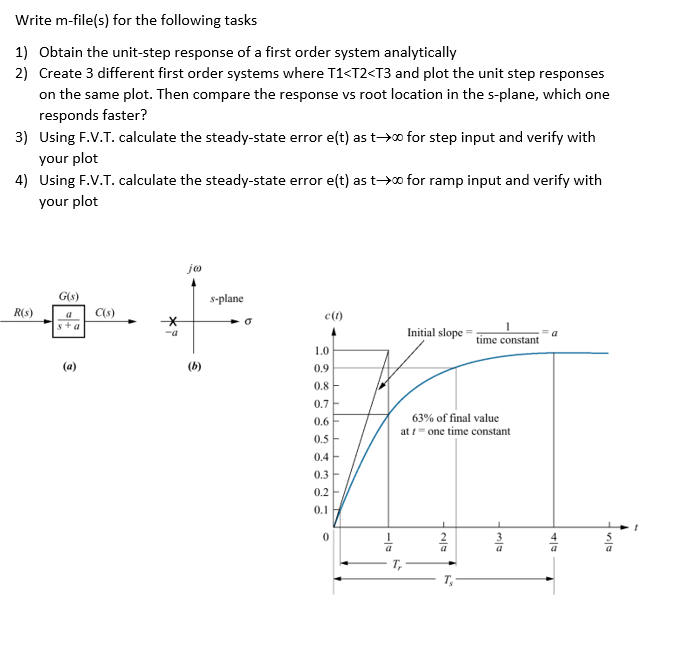

Write m-file(s) for the following tasks
1) Obtain the unit-step response of a first order system analytically
2) Create 3 different first order systems where \(\mathrm{T}1\mathrm{T}2\mathrm{T}3\) and plot the unit step responses on the same plot. Then compare the response vs root location in the s-plane, which one responds faster?
3) Using F.V.T. calculate the steady-state error e(t) as \( t \rightarrow \infty \) for step input and verify with your plot
4) Using F.V.T. calculate the steady-state error \(\mathrm{e}(\mathrm{t})\) as \(\mathrm{t}\rightarrow \infty \) for ramp input and verify with your plot
Write m - file ( s ) for the following tasks 1 )

Step by Step Solution
