Write the ladder logic program using the following information:

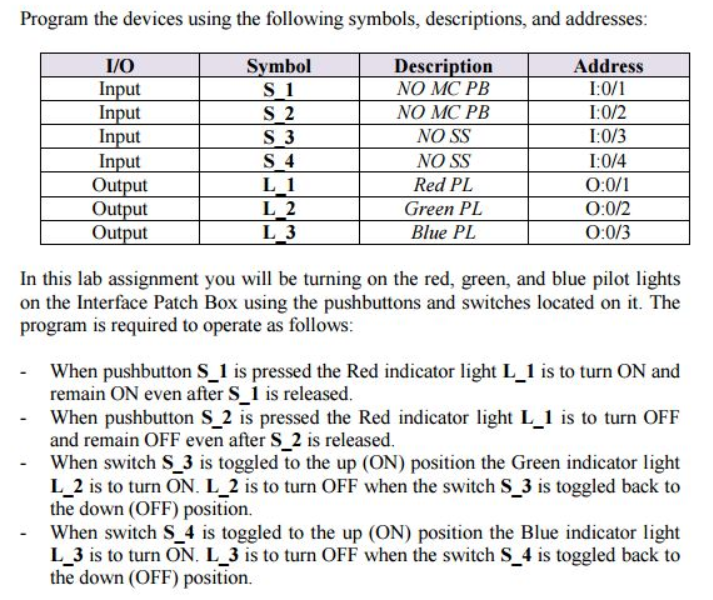

Program the devices using the following symbols, descriptions, and addresses I/O Input Input Input Input Output Output Output Description NO MC PB NO MCPB NO SS NO Ss Red PL Green P Blue PL Symbol Address 1:0/1 I:0/2 I:0/3 I:0/4 0:0/1 0:0/2 O:0/3 S 2 S 3 S 4 L 2 L 3 In this lab assignment you will be turning on the red, green, and blue pilot lights on the Interface Patch Box using the pushbuttons and switches located on it. The program is required to operate as follows When pushbutton S_1 is pressed the Red indicator light L_1 is to turn ON and remain ON When pushbutton S 2 is pressed the Red indicator light L 1 is to turn OFF and remain OFF even after S 2 is released. When switch S 3 is toggled to the up (ON) position the Green indicator light L 2 is to turn ON, L 2 is to turn OFF when the switch S 3 is toggled back to the down (OFF) position. When switch S 4 is toggled to the up (ON) position the Blue indicator light L 3 is to turn ON, L 3 is to turn OFF when the switch S 4 is toggled back to he down (OFF) position. even after S_1 is released
