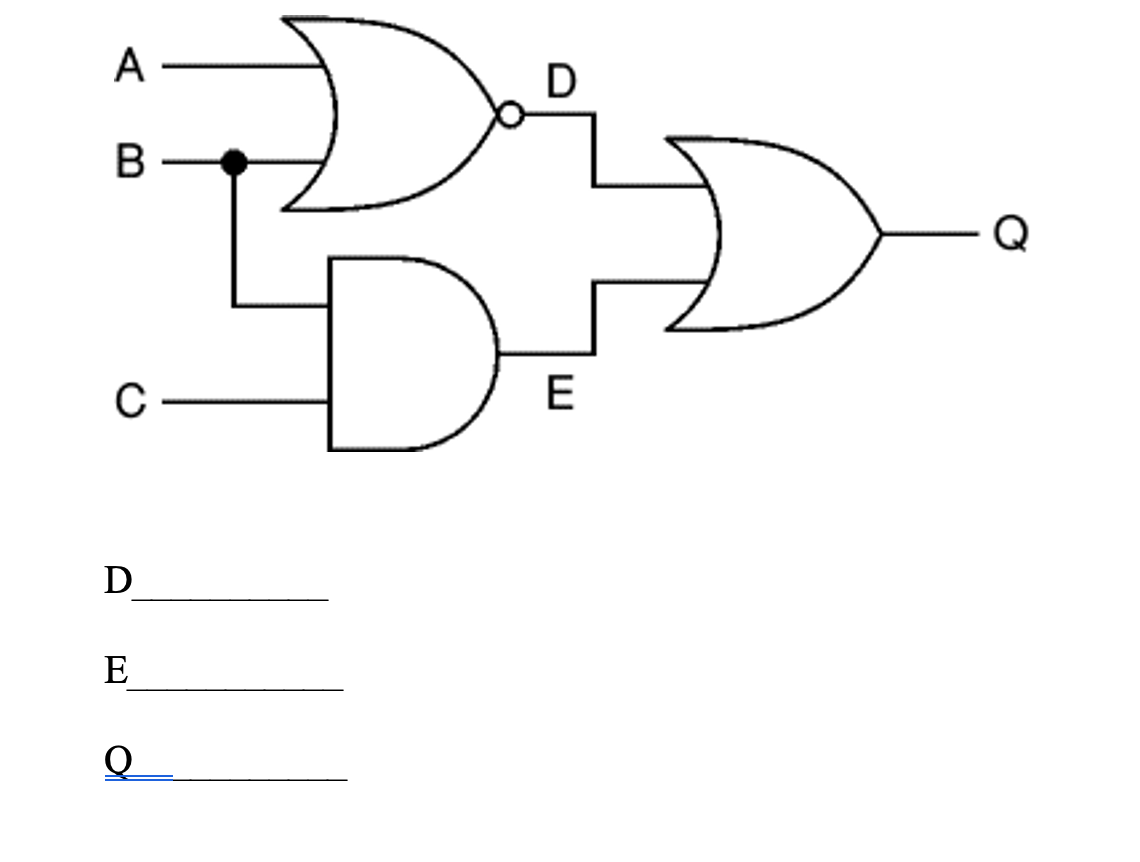

Question: Write the resulting logic function at points D, E and Q in terms of A, B and C A B E D E 0

Write the resulting logic function at points D, E and Q in terms of A, B and C

Write the resulting logic function at points D, E and Q in

A B E D E 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
