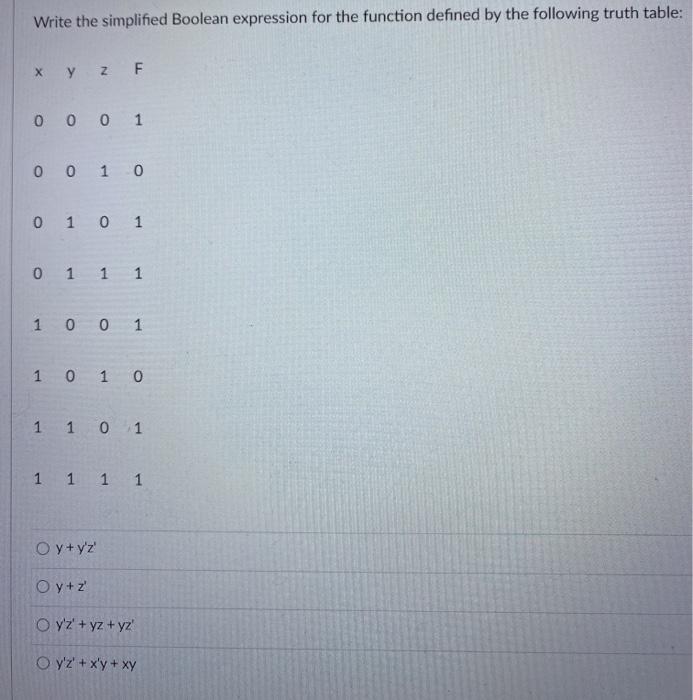

Question: Write the simplified Boolean expression for the function defined by the following truth table: x y 2 F 0 0 0 1 0 0 1

Write the simplified Boolean expression for the function defined by the following truth table: x y 2 F 0 0 0 1 0 0 1 0 0 1 0 1 0 1 1 1 1 0 0 1 1 0 1 0 1 1 0 1 1 1 1 1 O y + yz Oy+2 O yz' + yz + y2 O y'z' + x'y + xy

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
