Question: X = f(A,B,C,D) = A'BD + BCD + AB'C'D Y = f(A,B,C,D) = ABC' + ACD Please show work and thank you... 3.b) [4] Show

X = f(A,B,C,D) = A'BD + BCD + AB'C'D

Y = f(A,B,C,D) = ABC' + ACD

X = f(A,B,C,D) = A'BD + BCD + AB'C'D Y = f(A,B,C,D)

Please show work and thank you...

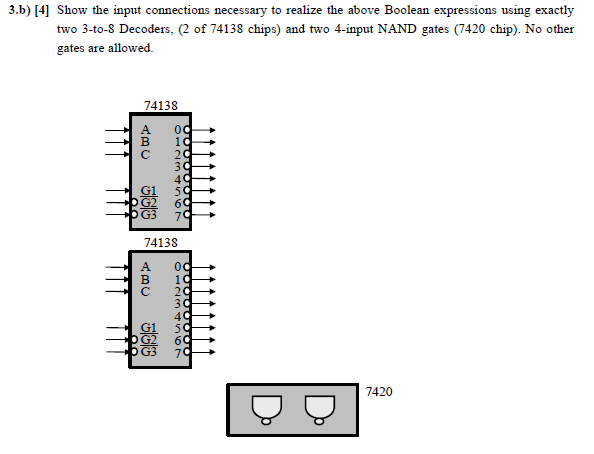

3.b) [4] Show the input connections necessary to realize the above Boolean expressions using exactly two 3-to-8 Decoders, (2 of 74138 chips) and two 4-input NAND gates (7420 chip). No other gates are allowed. 2 4 74138 7420 3.b) [4] Show the input connections necessary to realize the above Boolean expressions using exactly two 3-to-8 Decoders, (2 of 74138 chips) and two 4-input NAND gates (7420 chip). No other gates are allowed. 2 4 74138 7420
