Question: x=20m,y=15m 12. The tower is held in place by three cables. If the force of each cable acting on the tower is shown. Determine (i)

x=20m,y=15m

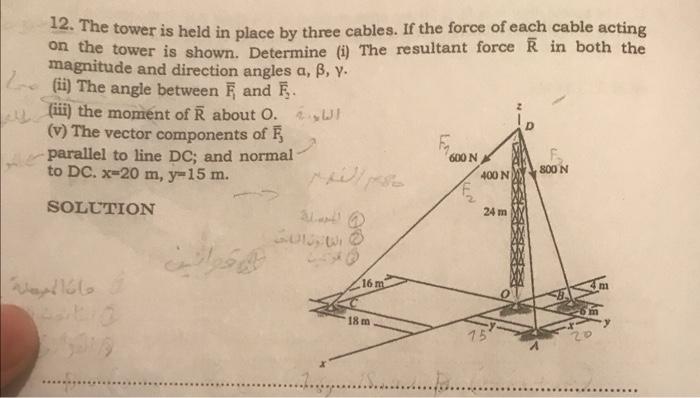

12. The tower is held in place by three cables. If the force of each cable acting on the tower is shown. Determine (i) The resultant force in both the magnitude and direction angles a, , y. (ii) The angle between and F,. (iii) the moment of about O. (v) The vector components of parallel to line DC; and normal to DC. x20 m, y15 m. SOLUTION 18m 15
