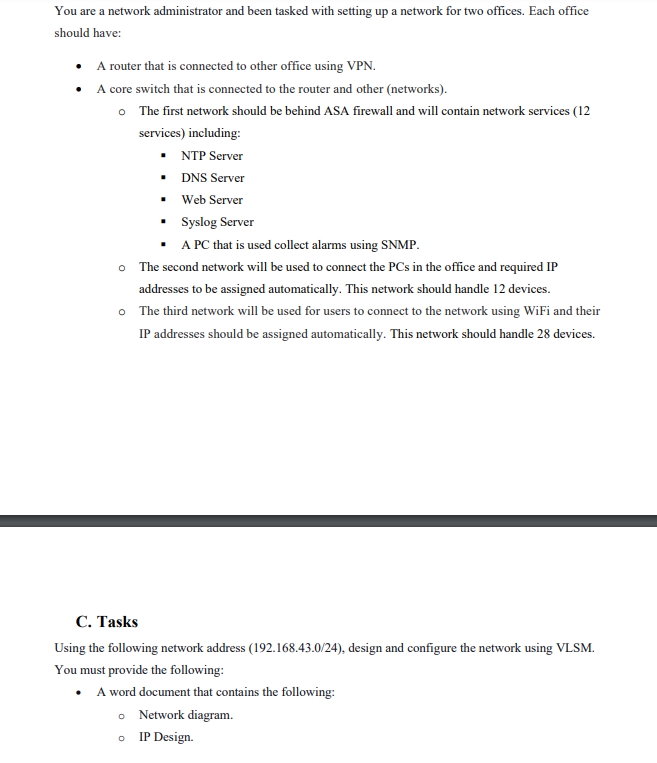

You are a network administrator and been tasked with setting up a network for two offices. Each office

should have:

A router that is connected to other office using VPN$.$

A core switch that is connected to the router and other $($networks$).$

The first network should be behind ASA firewall and will contain network services $(12$

services$)$ including:

NTP Server

DNS Server

Web Server

Syslog Server

A PC that is used collect alarms using SNMP$.$

The second network will be used to connect the PCs in the office and required IP

addresses to be assigned automatically. This network should handle $12$ devices.

The third network will be used for users to connect to the network using WiFi and their

IP addresses should be assigned automatically. This network should handle $28$ devices.

C$.$ Tasks

Using the following network address $(192\mathrm{.}168\mathrm{.}43\mathrm{.}0/24),$ design and configure the network using VLSM$.$

You must provide the following:

A word document that contains the following:

Network diagram.

IP Design.
