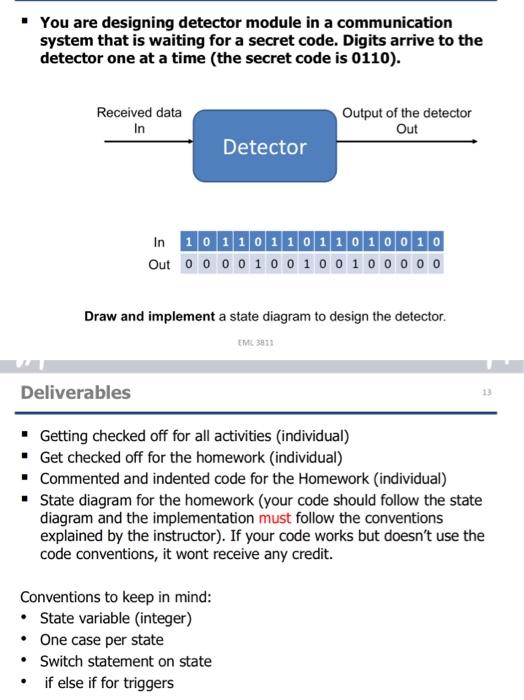

. You are designing detector module in a communication system that is waiting for a secret code. Digits arrive to the detector one at a time (the secret code is 0110). Received data In Output of the detector Out Detector In 1 0 1 1 0 1 1 0 1 1 0 1 0 0 1 0 Out 0000100100100000 Draw and implement a state diagram to design the detector. EML 3911 Deliverables 13 Getting checked off for all activities (individual) . Get checked off for the homework (individual) Commented and indented code for the Homework (individual) State diagram for the homework (your code should follow the state diagram and the implementation must follow the conventions explained by the instructor). If your code works but doesn't use the code conventions, it wont receive any credit. Conventions to keep in mind: State variable (integer) One case per state Switch statement on state if else if for triggers
