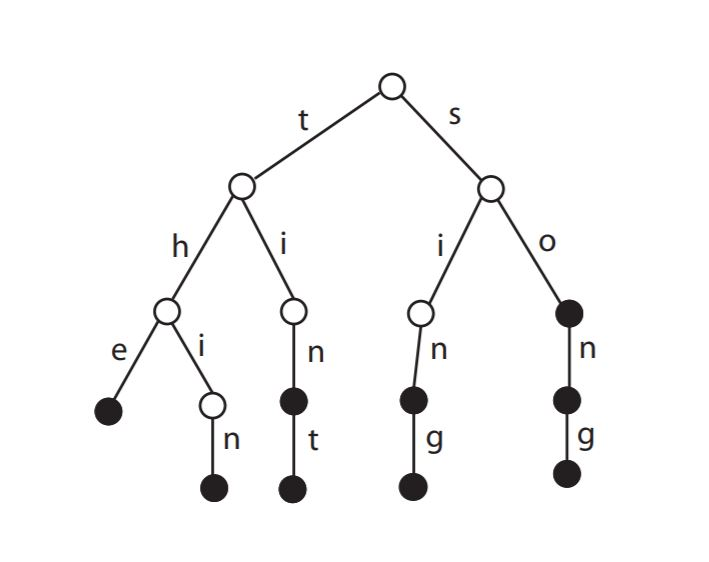

You are going to write a class to implement a Trie data structure and a program to test it The trie efficiently stores words, as in a spell-checker. To simplify matters, words will be restricted to strings of lower-case characters, including no spaces or punctuation marks. The member functions will be: boolean insert(String s); // returns false if s is already present, true otherwise boolean isPresent(String s); // returns true if s is present, false otherwise boolean delete(String s); // returns false if s is not present, true otherwise int membership(); // returns the number of words in the data structure void listAll(); // list all members of the Trie in alphabetical order A Trie is a tree of degree 26. The following Trie contains the words: the, thin, tin, tint, sin, sing, son, song

There is a boolean variable, terminal in each node. In the black Nodes that variable set to true to indicate the end of a word. Here are the class variables for a Node: class Node { boolean terminal; int outDegree; children Node[]; } Each Node includes an array of 26 references to Node. When a Node is created, all the array elements will be initialized to null and the outDegree will be set to zero. No other variables may be added to the Node class. In the above Trie, the root node has only two children, corresponding to characters s and t, or positions 19 and 20 in the array of references. A search begins at the root Node and follows the links, one level for each character in the given word. To find the word tin we begin with array element 20 in the root Node and, if it is present, we check element 8 in the array of the second level node. Finally, we check element 14 in the array of the third level Node. If that Node is marked as a terminal, we return true. 1 The insert function begins with a search for the given word. If a null reference is found, a sequence of new Nodes is created corresponding to the missing word ending. To insert the word soap to the above Trie, two new nodes would be added, corresponding to a and p. The a in this suffix would be referenced by the third level Node corresponding to the prefix so. Deletion also begins with a search for the given word. If found, there are two cases. Say we are deleting sin from the above Trie. Since the terminal character of the given word has children, deletion only requires flipping the boolean variable that indicates the end of a word. If the word thin is deleted, the suffix in must be unlinked from the third level node. To do this, when recursing out from the end of the given word, remove links to the characters of that word until a Node is found with degree greater than 1, or a terminal node is found. The former case occurs when deleting the word thin. The word the must remain. The latter case occurs when deleting the word song. The word so must remain. Your program will read a text file from System.in that contains text commands. In response to each command your program will output one or more lines of text to system.out. Here are examples of the commands: A soap // Insert the word soap // Print one of the strings "Word inserted" or "Word already exists" // followed by a newline. D sin // Delete the word sin. // Print "Word deleted" or "Word not found" followed by a newline. S fortune // Search for the word "fortune". // Print "Word found" or "Word not found" followed by a newline. M // Print "Membership is ####" where #### is the number of words in the Trie C wet // Search for the word wet in the Trie and, if not present, // output the phrase "Spelling mistake" followed by a space and then the word wet. // If the word is found, output the phrase "Spelling OK" followed by a space and // then the word wet. L // Print a list of the elements of the Trie in alphabetical order, one word per line. E // The end of the input file Here are sample input and output data files:

RULES FOR PROGRAMMING AND SUBMISSION: 1. Write your program as one source file and do not use thepackage construct in your Java source. 2. Name your source file as N1N2F1F2P2.java where your given name begins with the characters N1N2 and your family name begins with the characters F1F2. For example my name is Ivor Page, so my source file will be called IVPAP2.java. Note that in all but the java extension, the characters are upper case. 3. Your program must not output any prompts. Its output must exactly match the format of the Sample Output above 4. Do not use any Java Collection Classes, except Strings and arrays. If in doubt, ask me. 5. Use good style and layout. Comment your code well. 6. Your program MUST read from System.in and write to the System.out (cin, cout for C++ programs.
